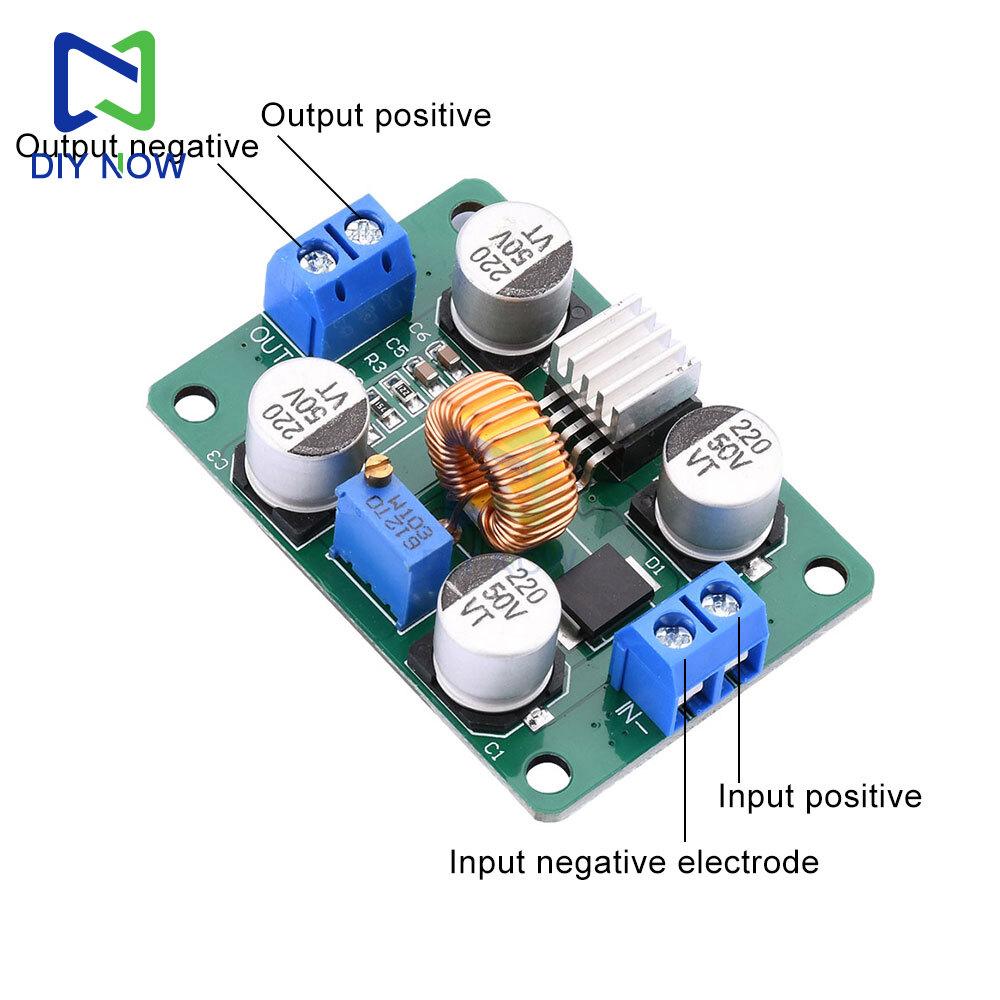

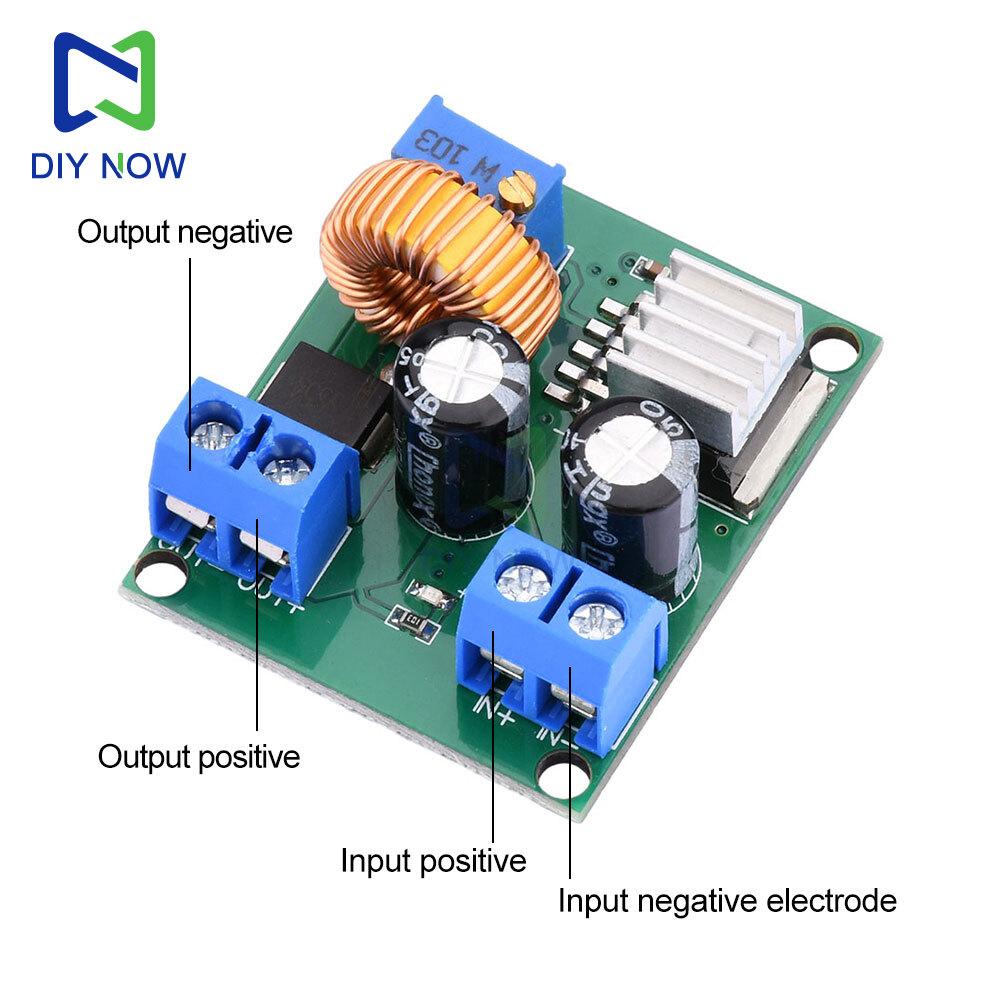

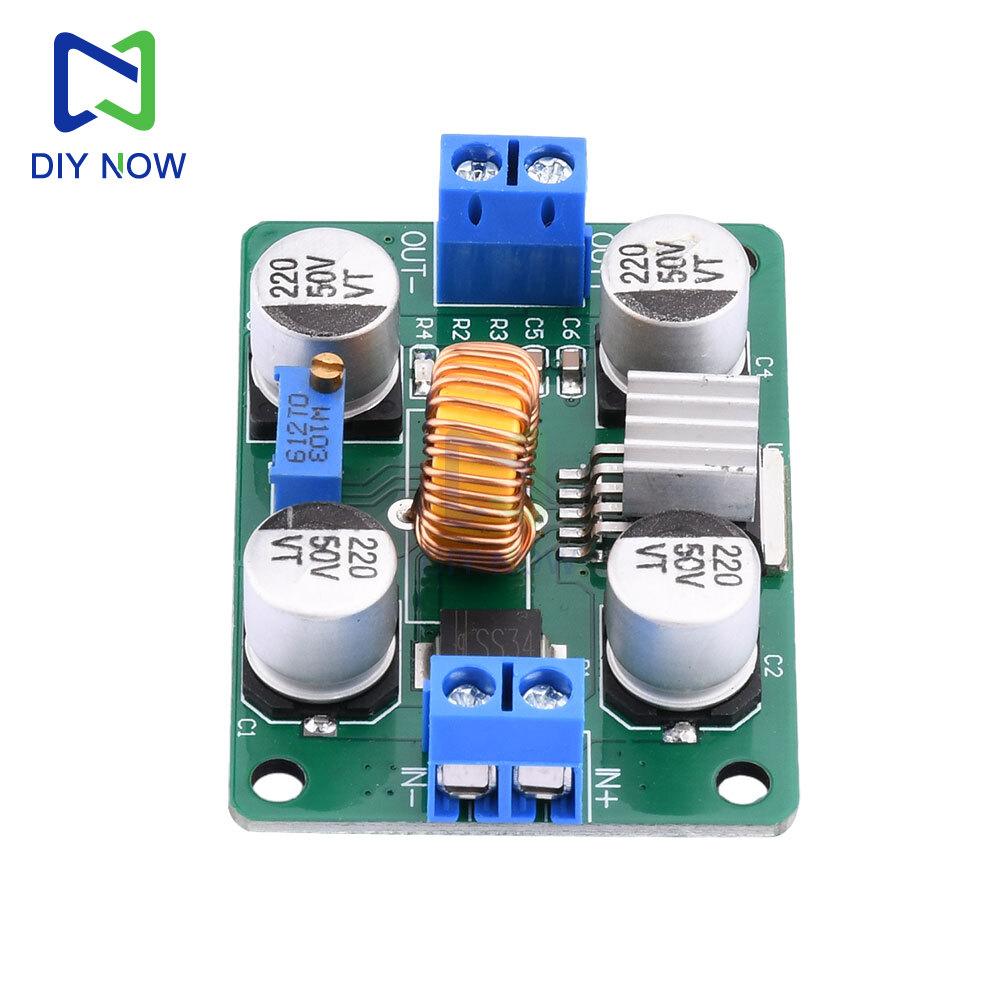

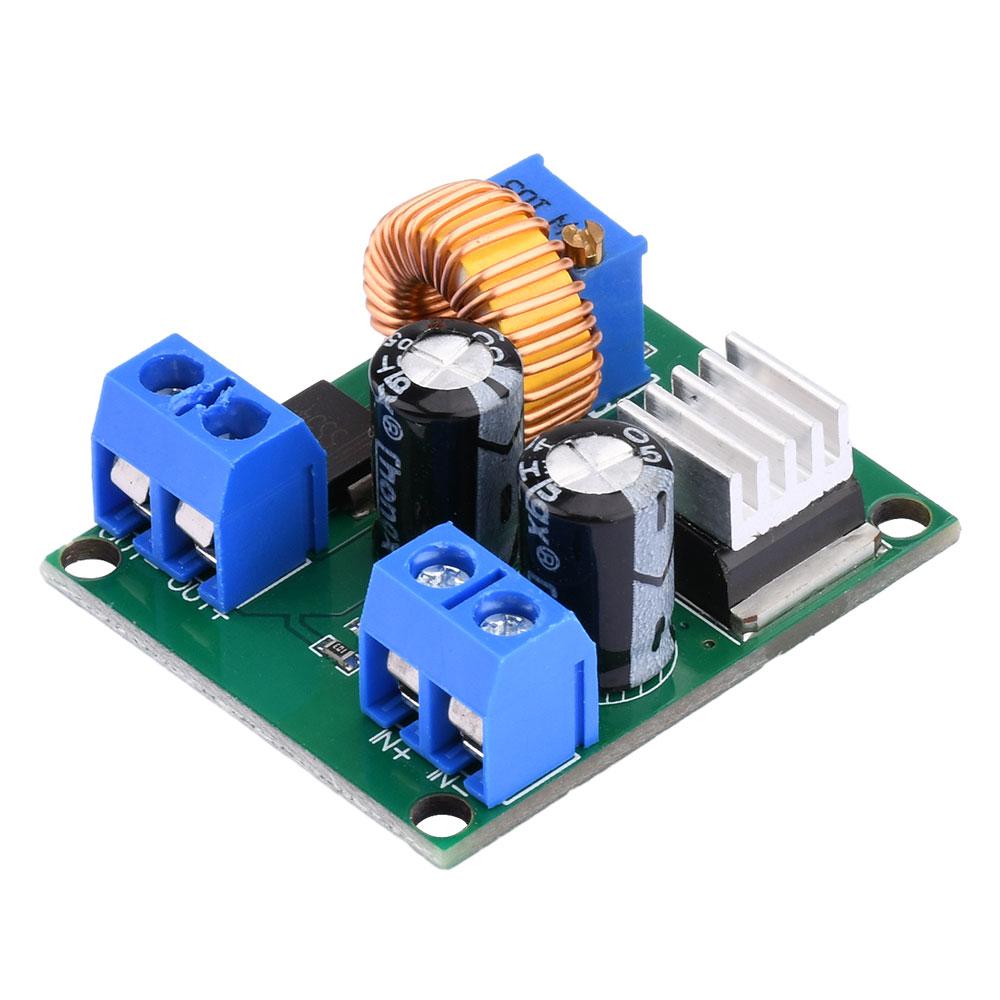

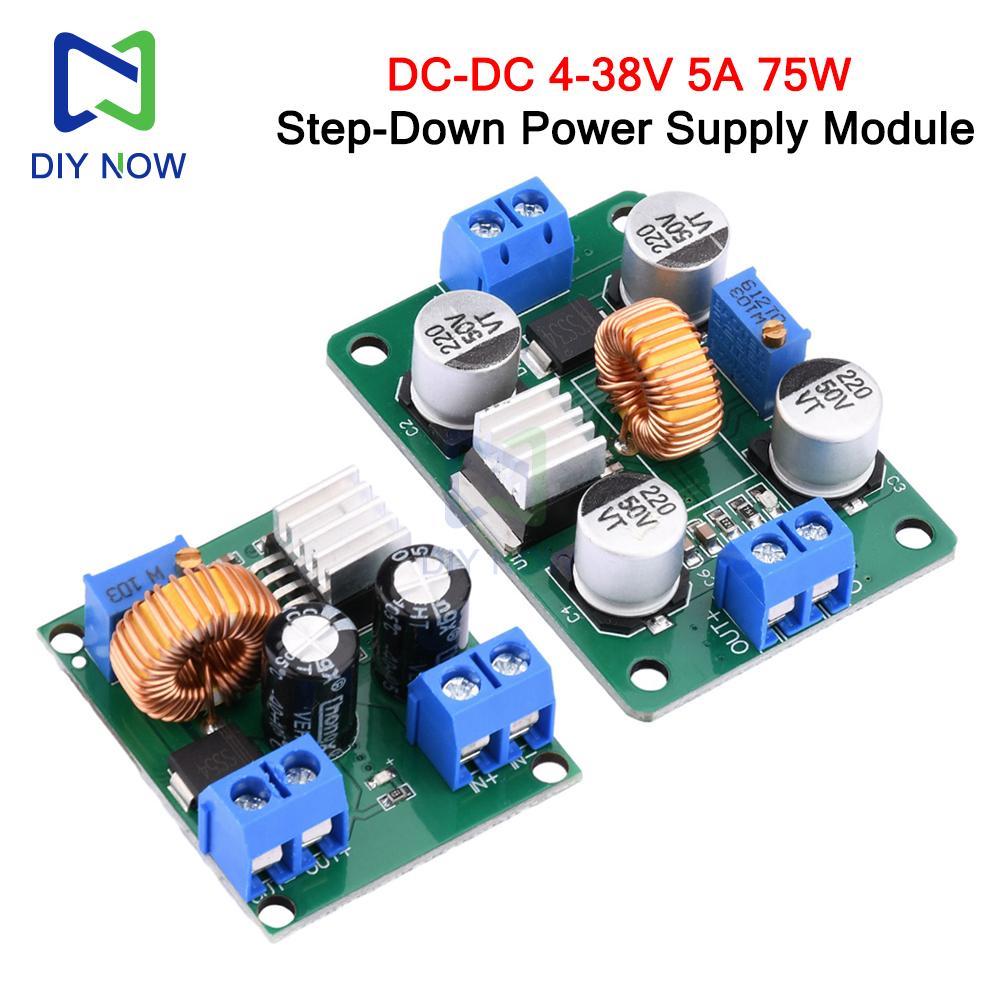

Adjustable DC-DC Buck Converter Module 4-38V to 1.25-36V High Power Step Down Voltage Regulator with Short Circuit Protection

Quantity : 1 High-concerned chemical : none Package : SOP Supply Voltage : DC-DC 4-38V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

Features: 1.Made of high-quality materials with stable performance, supporting DC4-38V input; 2.The output voltage is adjustable, supporting continuous adjustment of 1.25-36V; 3.Easy to use, with power indicator light; 4.With short circuit protection and over temperature protection, it can effectively protect the product from damage during use; 5.It has a wide range of applications and can be applied in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, etc. Parameters: Module nature: Non isolated buck module (BUCK) Input voltage: 4-38V (please try not to exceed 38V for input) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A, recommended for use within 4.5A. Output power: It is recommended to use within 75W. Working temperature: -40~+85 degrees Celsius Working frequency: 180KHz Conversion efficiency: 96% (efficiency is related to input and output voltage, current, and voltage difference) Load adjustment rate: S (I) ≤ 0.8% Voltage adjustment rate: S (u) ≤ 0.8% Power indicator light: Yes Short circuit protection: Yes (limited current 8A) Overtemperature protection: Yes (automatic shutdown output after overtemperature) Aperture: 3mm screw Size: Small board: 38mm * 32mm * 15mm Large plate: 53mm * 37mm * 15mm Wiring method: Welding, V-IN as input, V-OUT as output Application scope: This module can be applied in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V vehicle mounted laptop power supplies, industrial equipment voltage reduction, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc. Package include: 1X module
