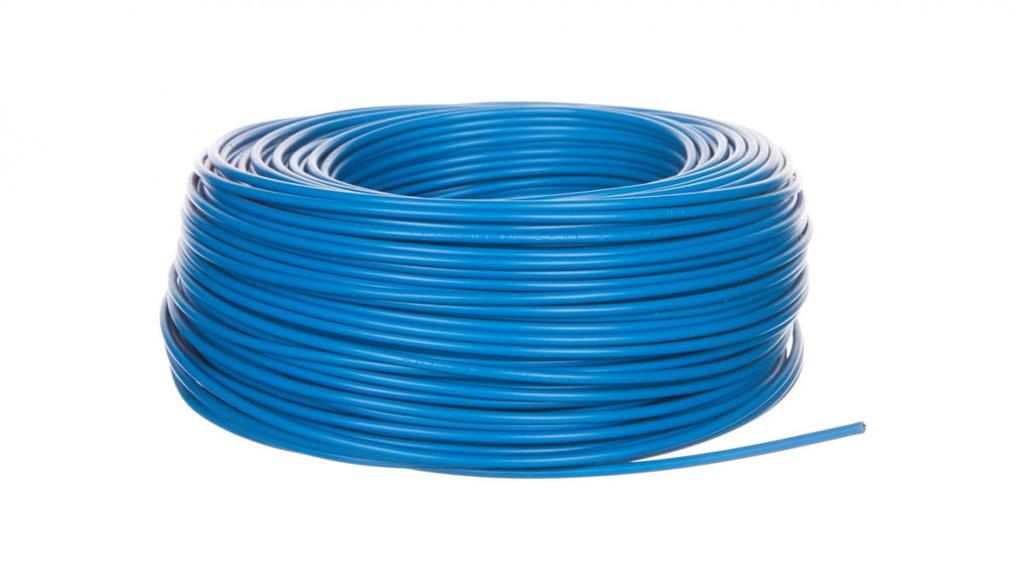

Installation Cable H07V-K 1.5 Blue 29131 /100M/

Halogen-free EN 50267-2-2: No

Permissible cable temperature for flexible connections [°C] d: 70

Permissible cable temperature for flexible connections [°C] o: -5

Permissible cable temperature for fixed installation [°C] up to: 80

Permissible cable temperature for fixed installation [°C] from: -30

Manufacturer's index: 29131

Rated voltage U [V]: 750

Rated voltage U0 [V]: 450

Low smoke emission (according to EN 61034-2): No

Low temperature resistance (according to EN 60811-1-4): No

Oil resistant (according to EN 60811-2-1): No

Approximate outer diameter [mm]: 3.4000

Approximate cable weight [kg/km]: 22

Nominal conductor cross-section [mm2]: 1.5000

CN: 8544 49 95 Length: 200 EAN: 4060892000508 Screen: No Core insulation: PVC Core class: Class 5 = flexible Insulation color: Blue Flame retardant: According to EN 60332-1-2 PKWiU: 27.32.13.0 Series: H07V-K Width: 200 Weight: 1.8000 Height: 60 Size: 100m
