Zinc Alloy Digit Code Combination Cam Lock Code Unlock Cabinet Coded Lock Coded Lock School Locker

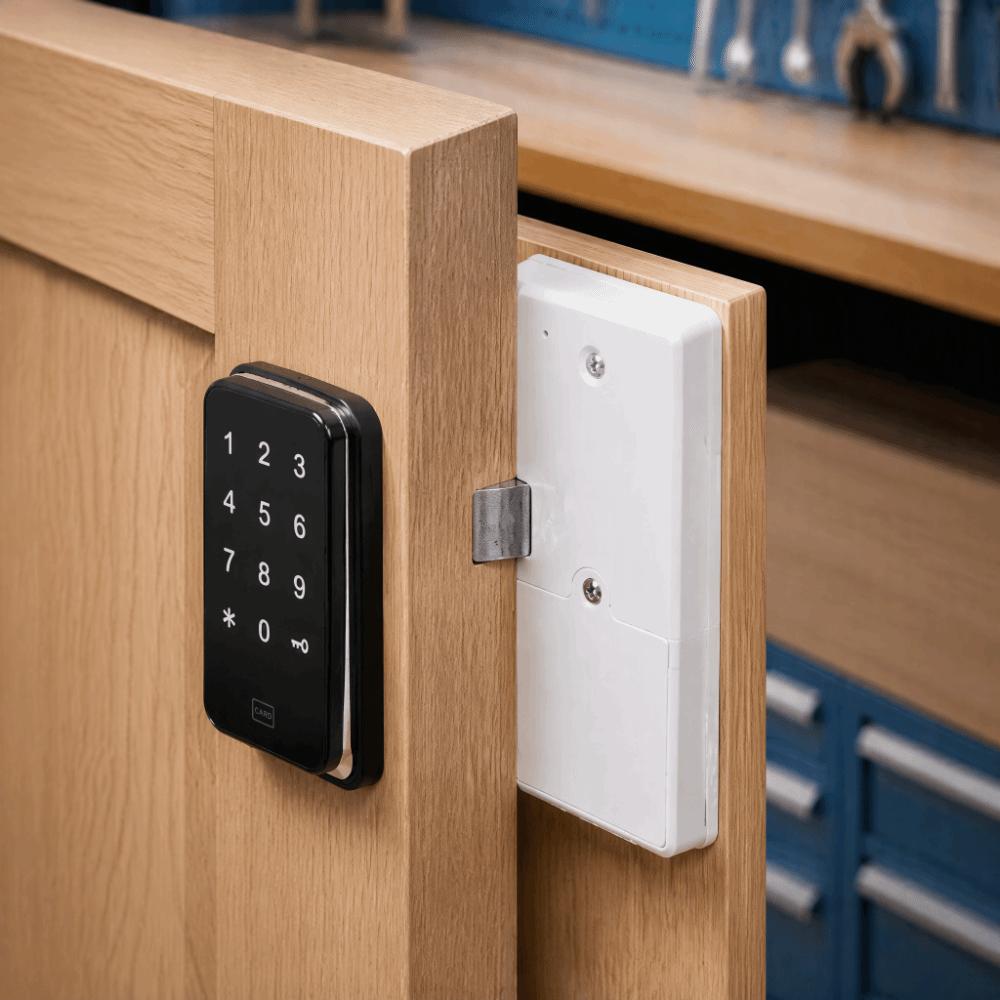

Label:Yes Installation is very simple, open a wire hole, connect the panel and lock body line, and then directly fix the panel and lock body with two screws. Factory state: Management password: 12345678, default home mode, single open mode unlock. Made of zinc alloy material, strong, precision, safe and durable. Configuration in home mode: 1 group management password, 200 group user password (number 001-200) password digits: 4-15 digits. Ideal for tool boxes, cabinets, drawers, mail box, school lockers or any where keys are not suitable.

Advantages: Metal cabinets can be installed A. Change the management password: Original management password + key key 1+ New management password + key key New management password + key key B. Add user password: Management password + key key 8 + number (001-200) key key User password Key key user password Key key ; can be added continuously

1, delete the user password: Management password + key button 4 + number (001-200) key button No. (001-200) key button; can be deleted continuously 2. Delete all user passwords: Management password + key button 0 + key button

Note: Enter the wrong password lock keyboard for 7 minutes in succession for 7 minutes. Add a temporary user (operating normally) Add a temporary password (in single-on mode): New temporary password + key button New temporary password + key button; door lock closed C, system settings: 1. Switch between home and public modes: Management password + key button 7 key button 2. Switching from single-on mode to dual-on (combination) mode: Management password + key button 6 key button 3. Double-open (combined) mode is switched to single-on mode: Management password + key button 5 key button

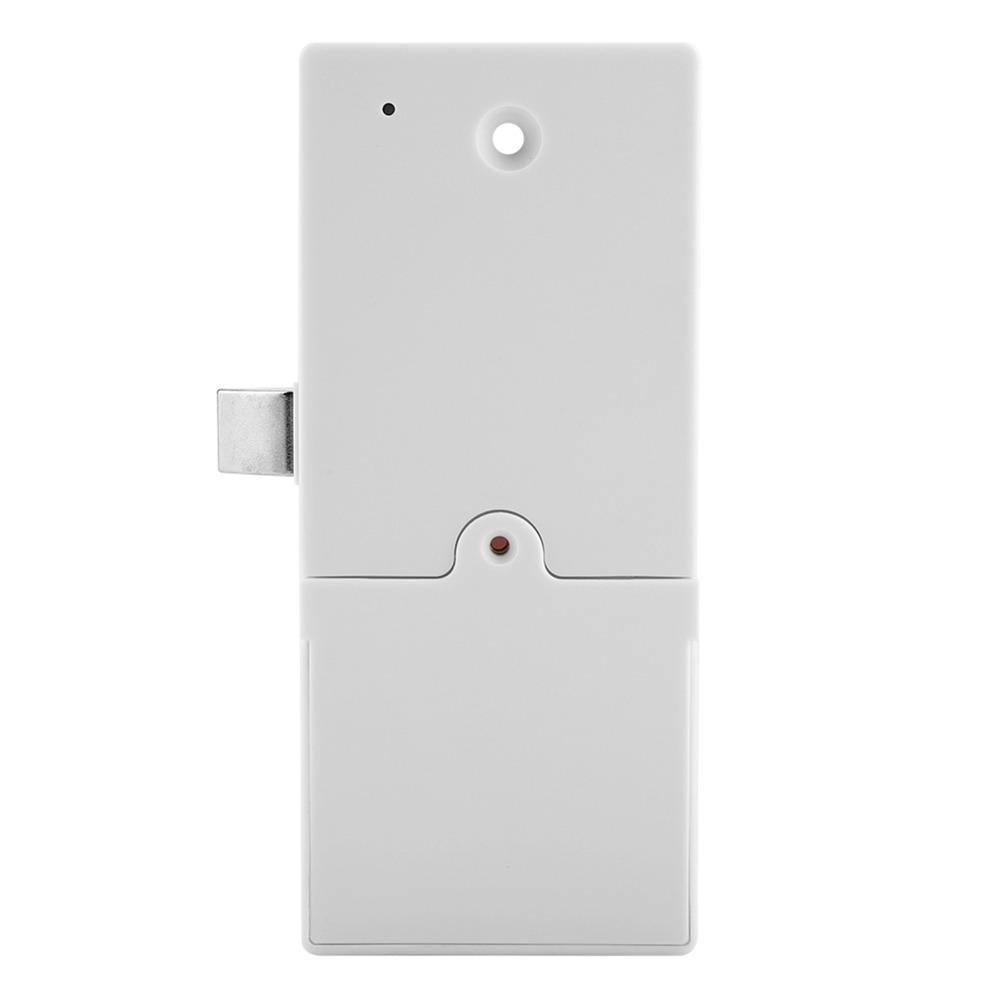

Front lock Size:10.8 x 5.5 x 2cm / 4.25 x 2.17 x 0.79 inch (appr.) Rear lock 14.5 x 6.5 x 2.2cm / 5.71 x 2.56 x 0.87 inch(appr.) Color:black Weght:340g/11.9oz Material:zinc alloy

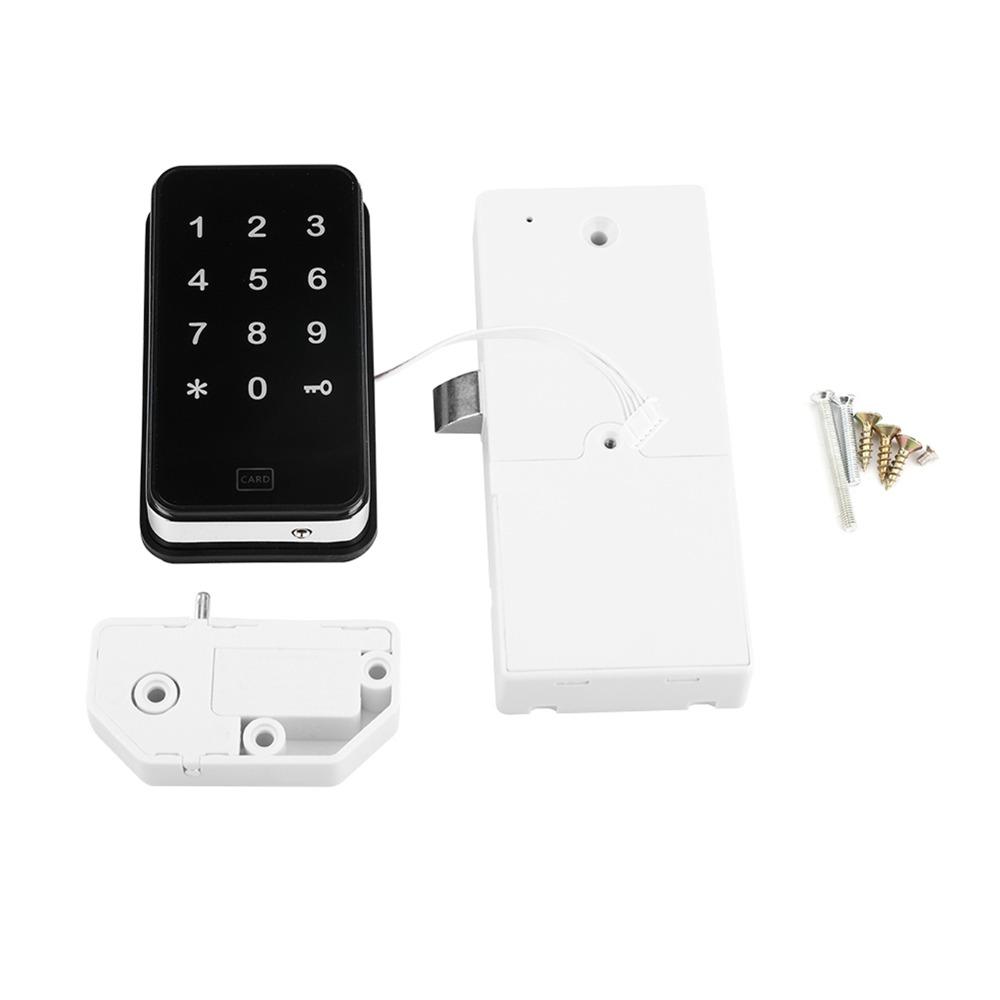

Package List: 1 xFront lock body 1x Rear lock body 1 x Lock Slot 6 x Screws

Notice: Product unlocking method: digital keys and 125khz ID card (ID card not included)
