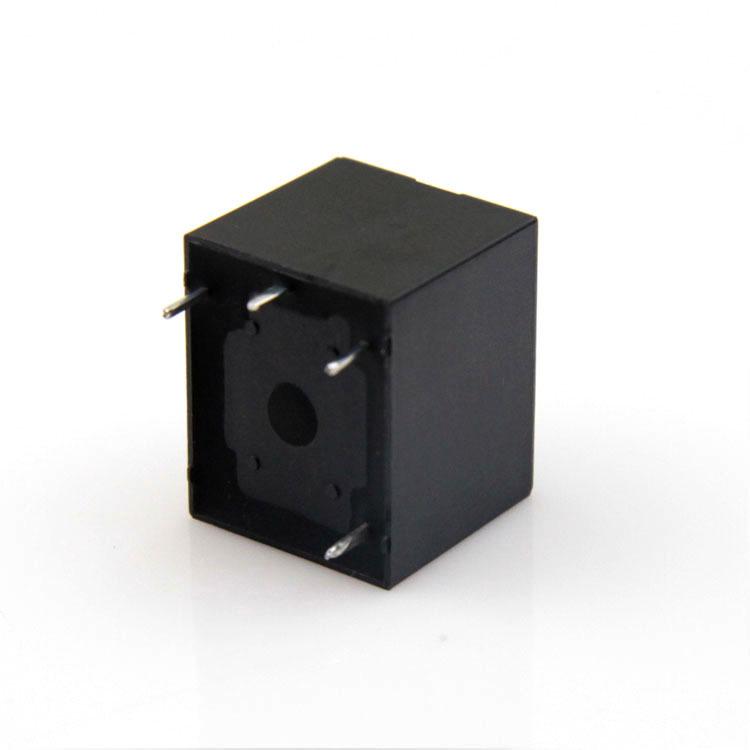

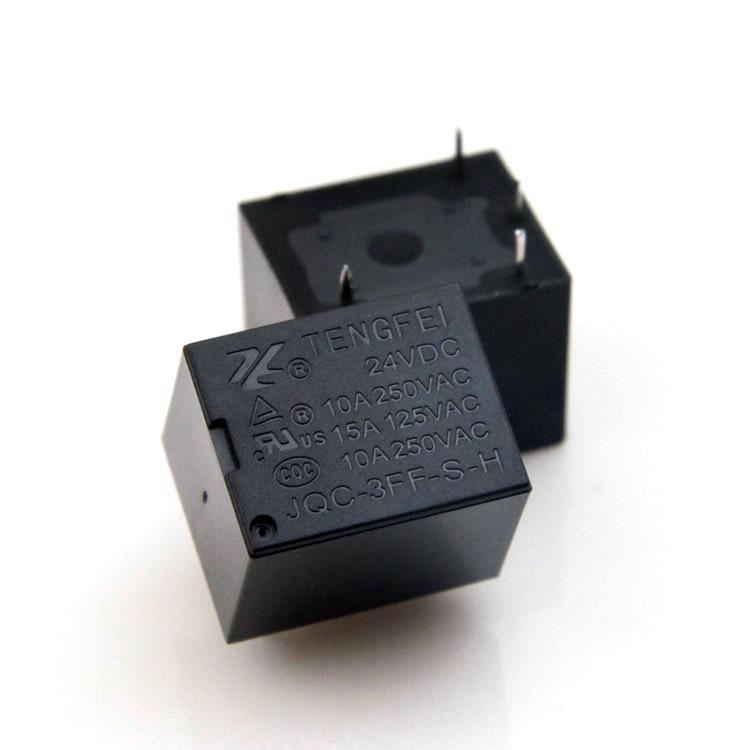

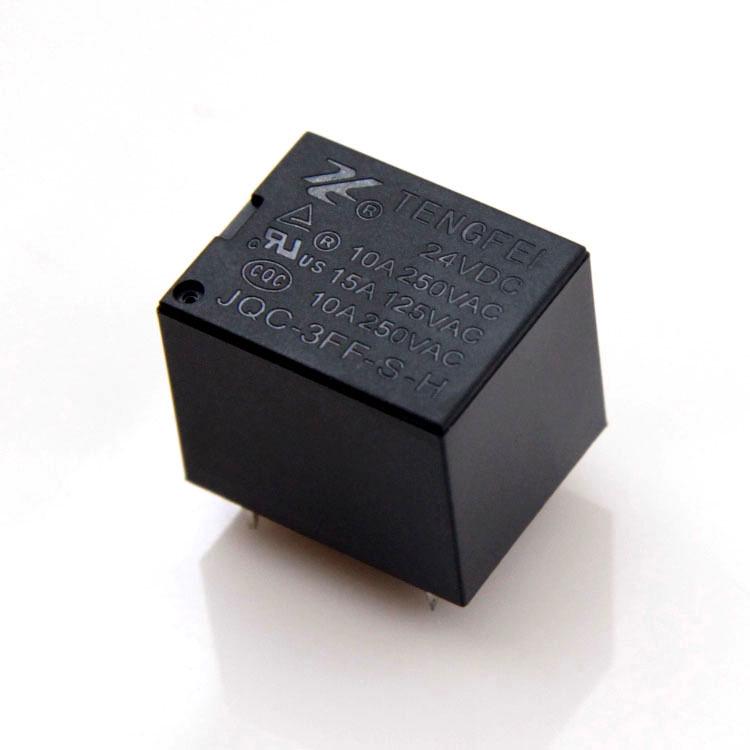

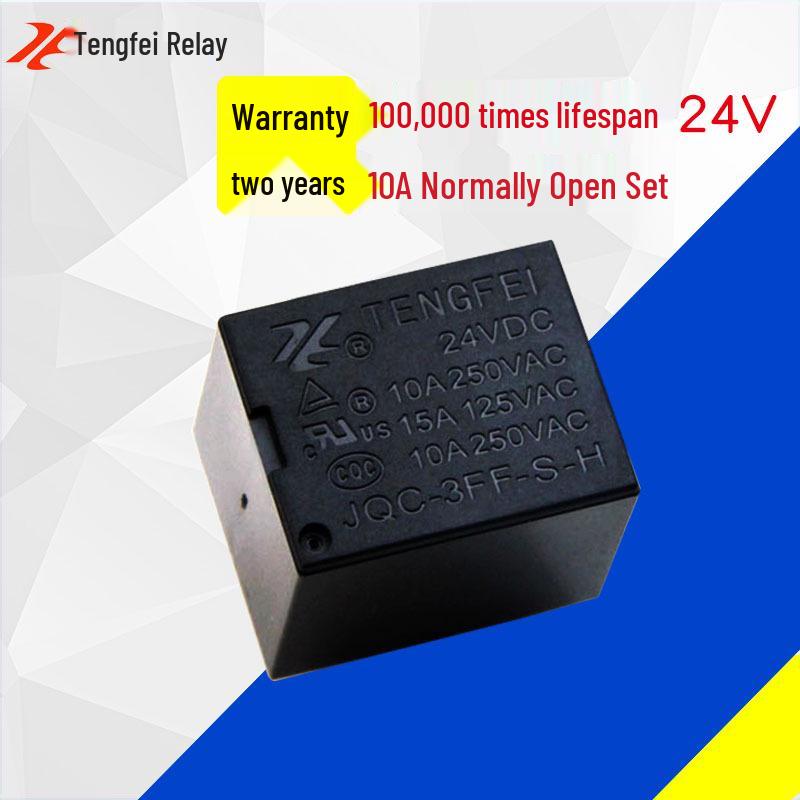

24V Relay, 4-Pin T73, Supports 5V/6V/9V/12V, 10A Small Electromagnetic Relay

This compact electromagnetic relay is designed for efficient switching applications and operates with a 24V coil. It features a 4-pin configuration, making it easy to integrate into various electronic circuits. The relay is versatile, as it supports multiple input voltages including 5V, 6V, 9V, and 12V, providing flexibility for different project requirements. With a robust 10A current rating, it ensures reliable performance for controlling medium power loads. This relay is ideal for use in automotive, industrial, and home automation systems. Application: Electromagnetic Contact Load: 15A125VAC, 10A250VAC Contact Switching Current: 15A Contact Switching Voltage: 250VAC, 30VDC Contact Form: Normally open type Rated Current: 10A Protection Features: Sealed Coil Power Supply: 24V Coil Power: 0.36W 3C Rated Voltage Range: 36V or less Type: Small relay Electrical Life: 100000 Physical Dimension: 19*15*15 Coil Resistance: 1600 Manufacture country: China Instructions included: No
