RecMount Plus Brompton Mount Kit for iPhone 13 Pro Max [R+BPT2-iPC15] (Mount + Dedicated Case)

[Installation Instructions] Fix the mount as shown in the exploded view. Insert the required number of shims based on the gap. You can insert the shims on either the front or front side.

When replacing with the included black bolts, 1. Remove the nut. 2. Remove the bolt.

[Notes] The angle must be adjusted when folding. *This may not be compatible with some models with no gap due to individual differences or certain years. Please be sure to check the actual dimensions before purchasing. Also, if the bar clearance is narrow, such as with the P or M type, a large device may interfere with the wires or handlebars, making it difficult to achieve the ideal angle. Please check the dimensions and whether you can actually hold the device and rotate it 90 degrees before purchasing. When installing on the bottom (GMUT-GP), it is necessary to install it at an angle that does not interfere with the device. *Depending on the shape of the device and adapter, an aluminum extension adapter may be required. Please check the specifications and the dimensions and shape of the device.

We recommend that this product be installed by a bicycle shop. No tools are included.

This product requires a REC MOUNT+ device (dedicated case, universal adapter, universal silicone case, etc.). It cannot be attached to cases from other manufacturers.

Brommpton Mount Type 2 [R+BPT2], four color replacement release levers, and a dedicated case.

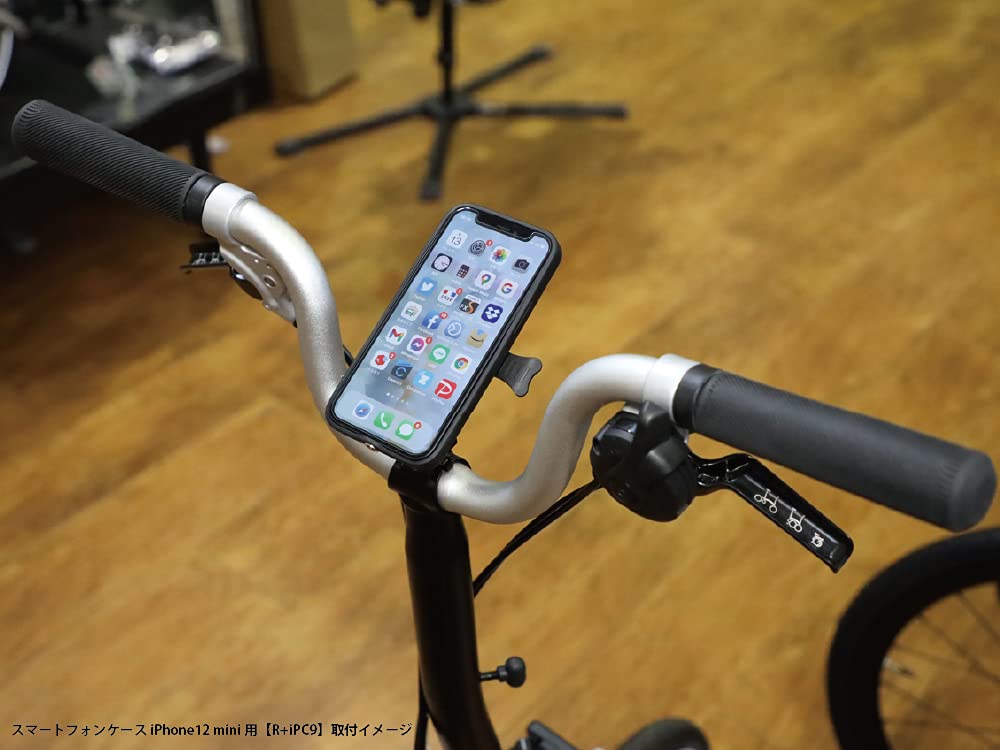

This dedicated Brompton model is compatible with all Brompton types: M, S, P, and H. This smartphone mount Type 2 is fitted between the handlebar fixing bolts. It can accommodate smartphones and Garmin cycle computers. It also includes the GMUT-GP adapter, which can accommodate GoPro HERO series cameras and REC MOUNT light adapters and camera adapters.

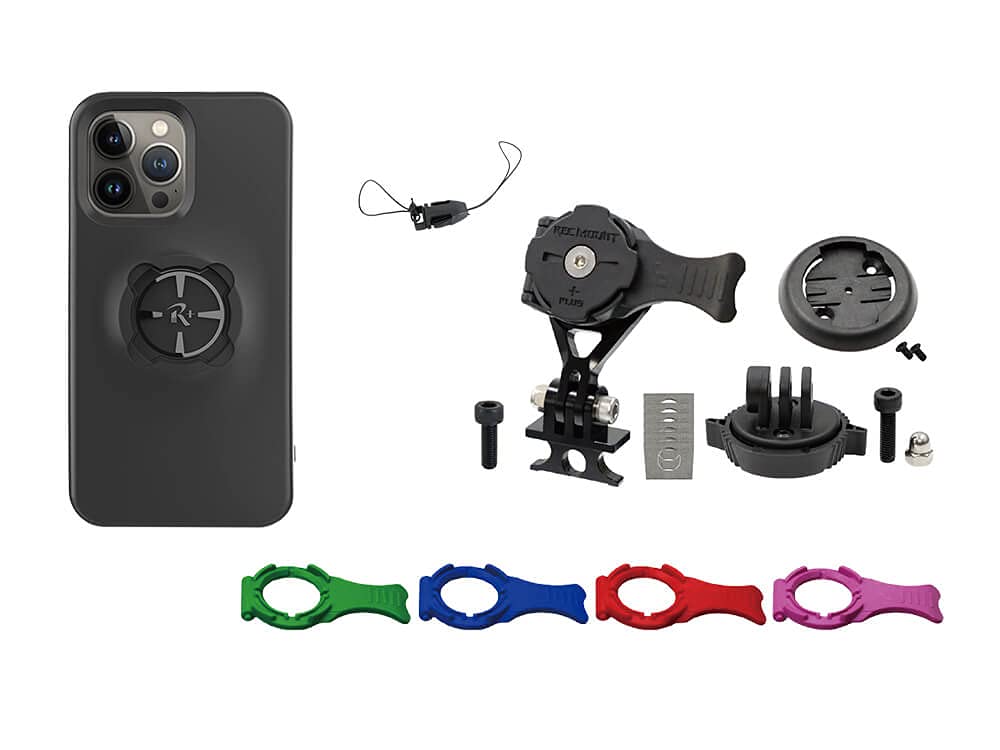

This allows you to attach and detach devices with a single turn of the lever, eliminating the need to remove and attach screws every time, even when folding. Specifications: Base/Head: 400-GMUT Material: AL6061 Aluminum, CNC Machined; Lock Lever: GMUT-GP Material: Resin; Dedicated Shim/Bolt Material: Stainless Steel *Includes accessories excluding case and four-color lever. This product may or may not be assembled. Includes: ① Base Mount x 1, ② Head Assembly x 1, ③ Shims x 6, ④ Adjustable Bolt/Nut x 1, ⑤ Fixing Bolt x 1, ⑥ 400-GMUT x 1, ⑦ GMUT-GP x 1, ⑧ Garmin Socket and Screw x 1. No tools are included.
