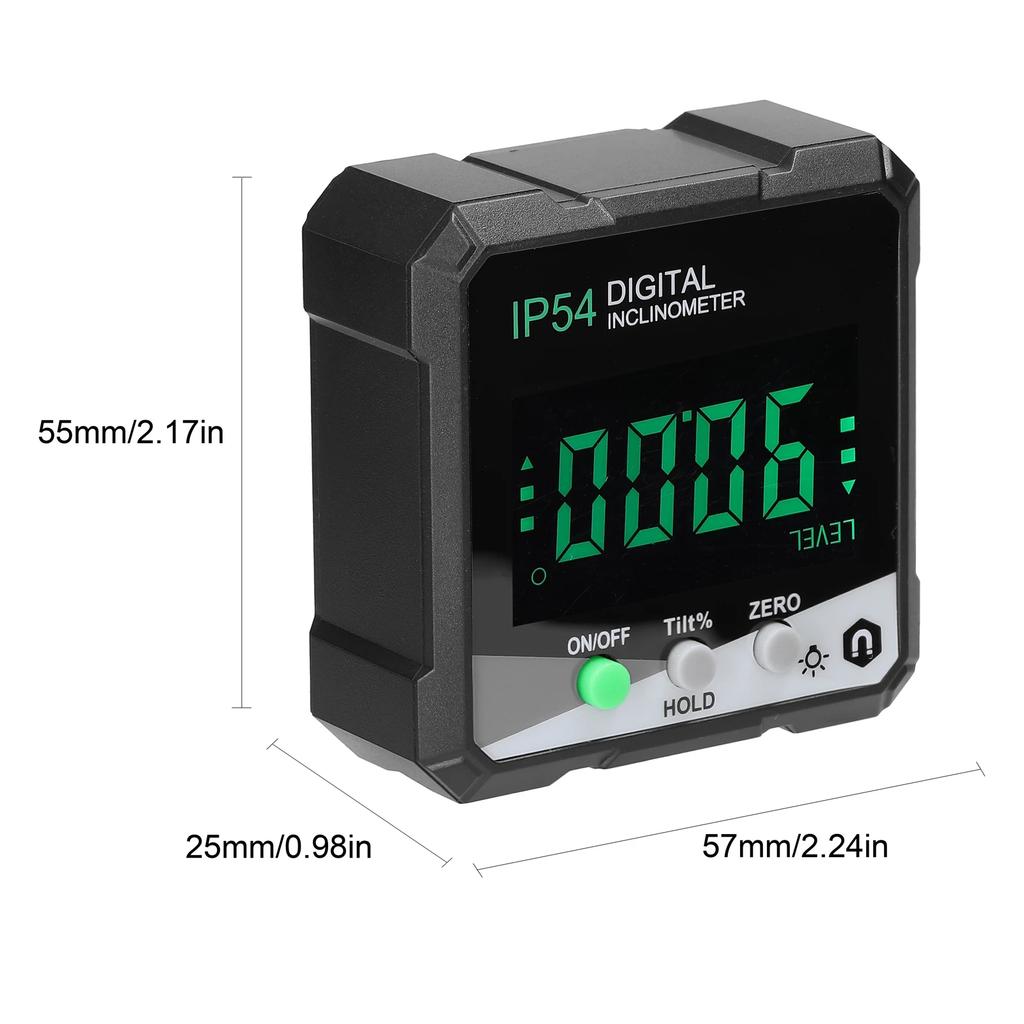

Size:5.7*5.5 cm
Origin : China
Model Number : DC111
Certification : CE,RoHS
Attention:remark: different model for choose
Application
It is widely applied in wood processing industry (especially in furniture manufacturing dustry) for the accurate cutting of wood angle ;auto repair industry for the accurate control of tire angle ;maching industry for the accurate position of tool working angle as well as the roation angle of large vehicle arm etc
Technical Parameters
1.Measuring range:4×90°
2.Resolution:0.05°
3.Accuray:±0.2°
4.Repeatability:0.1°
5.Battery:2 pcs AAA battery(nit included)
6.Work temperature:-10℃~50℃

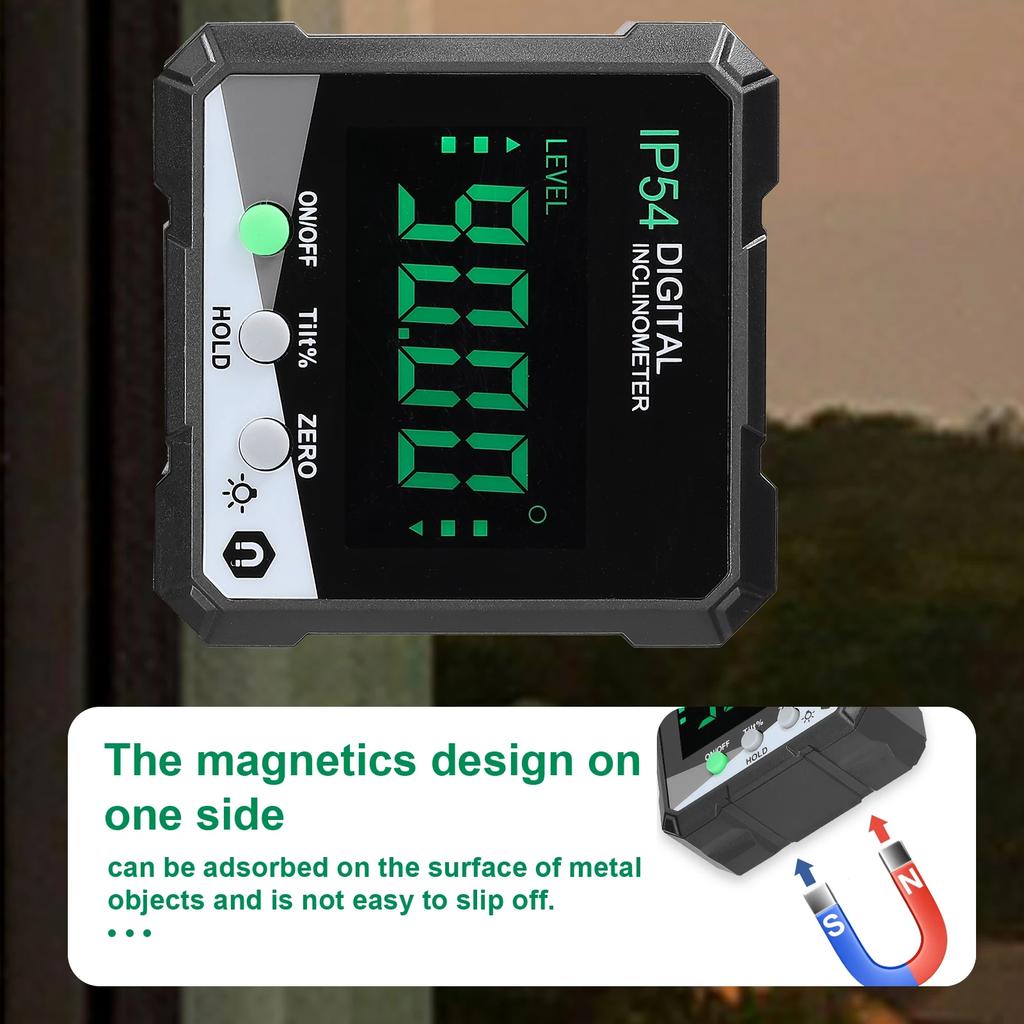

7.Magnetized bottom make various stick -on measurements simple and accurate
8.Absolute zero measurement based on the level surface
Characteristic
1.Relative /absolute measurements interchcange at any position
2.Angle and slope readout conversion
3.Data hold
Features:
As a common measuring tool, the horizontal scale plays an important role in construction, decoration and mechanical manufacturing.
It is widely praised for its simple design and precise measurement functions.
The body of the level ruler is made of a durable material to ensure the stability of the measurement.
Whether it is installing doors and windows, laying floors, or debugging mechanical equipment, it is an indispensable right-hand assistant.
Help staff to quickly and accurately complete level measurements to ensure the accuracy and quality of the project.
