【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
For the Raspberry Pi 4 Model B only, it supports up to 4TB of 2.5-inch SATA hard disk drives (HDDs)/solid-state drives (SSDs). Only 2.5-inch SATA HDDs/SDDs are compatible with the X825 board. X825 Case, ASIN: B094XR82PM, X825 Power Supply: B085Q3W9MX
Power Requirements: AC 100-240V input, 50/60Hz, 5V DC 4A output. Use a high-quality DC 5V 4A power supply. ASIN: B085Q3W9MX is strongly recommended. Using a low-quality power supply may damage your 2.5-inch HDD/SSD or cause the HDD/SSD to not be recognized.
OS Compatible: All Raspberry Pi operating systems. USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
Package includes: 1 x X825 V2.0 expansion board, 1 x USB 3.1 connector, 1 x mounting screw pack. Note: Raspberry Pi 4B board and 2.5" SATA HDD/SSD are not included.

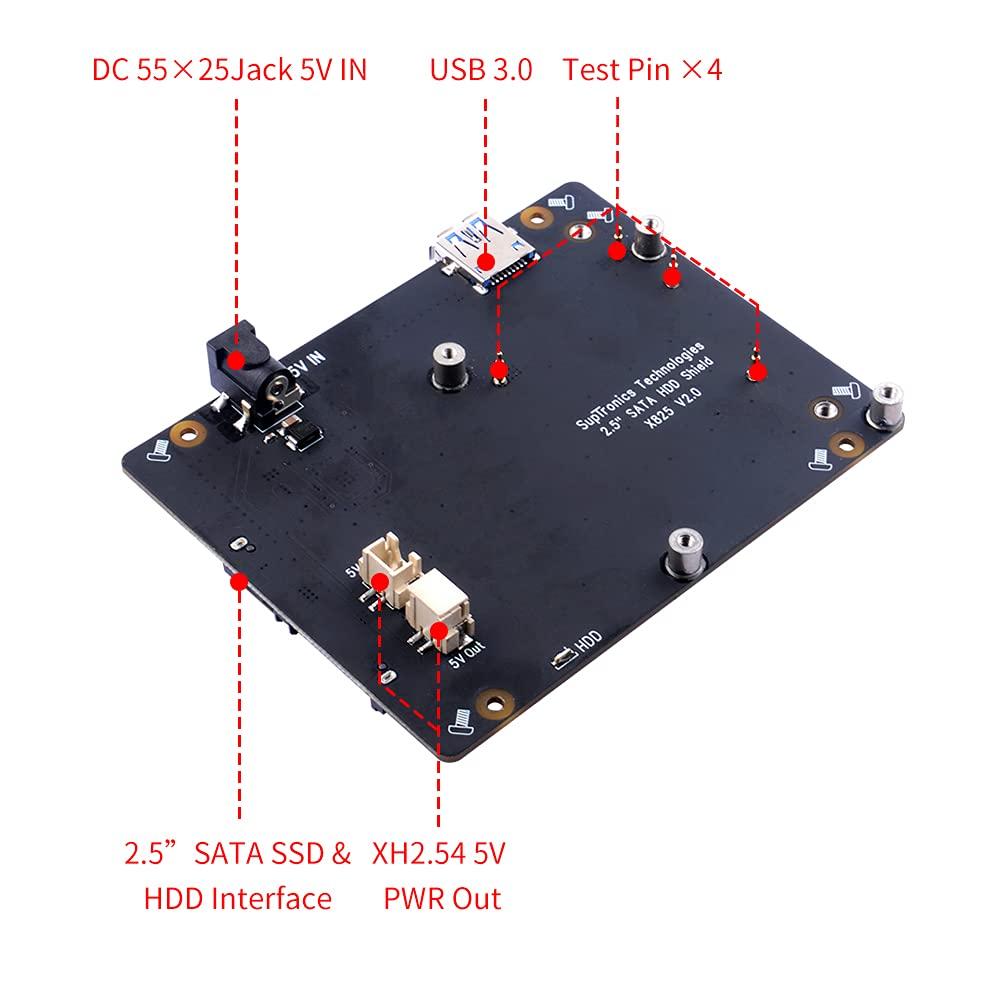

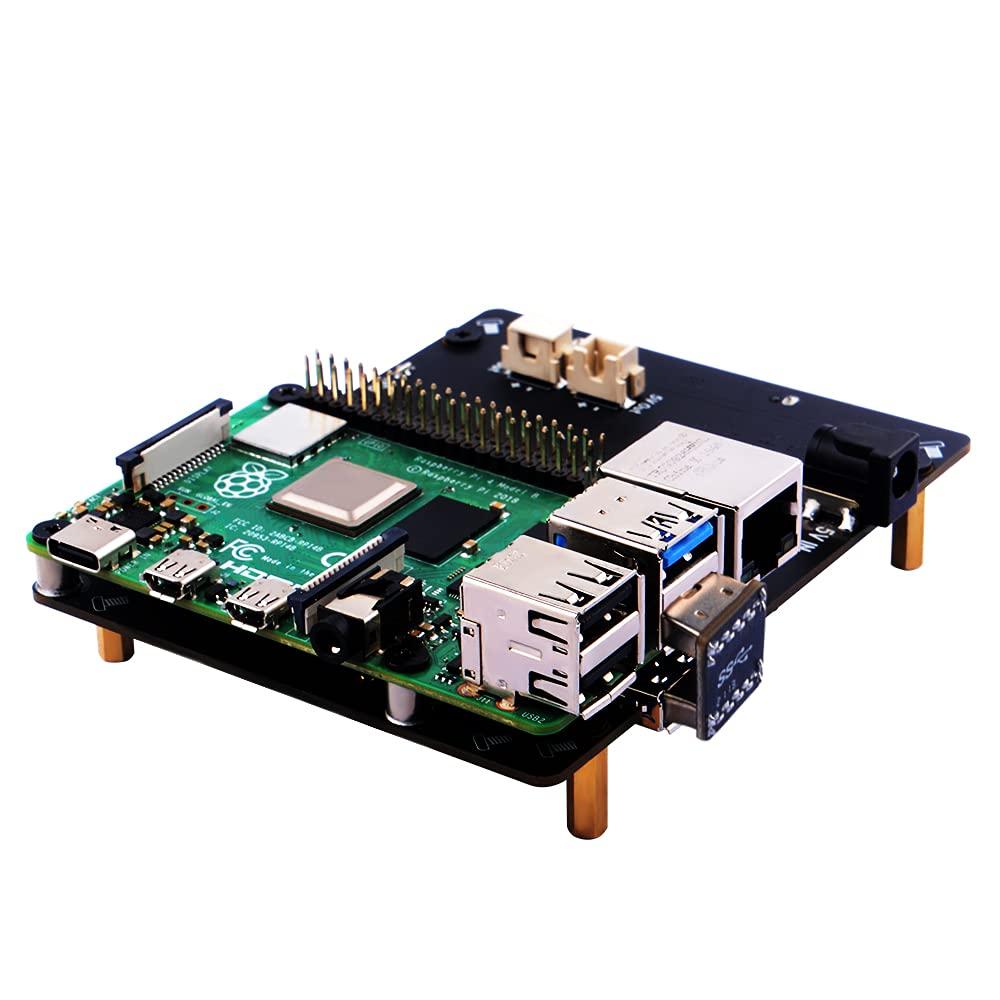

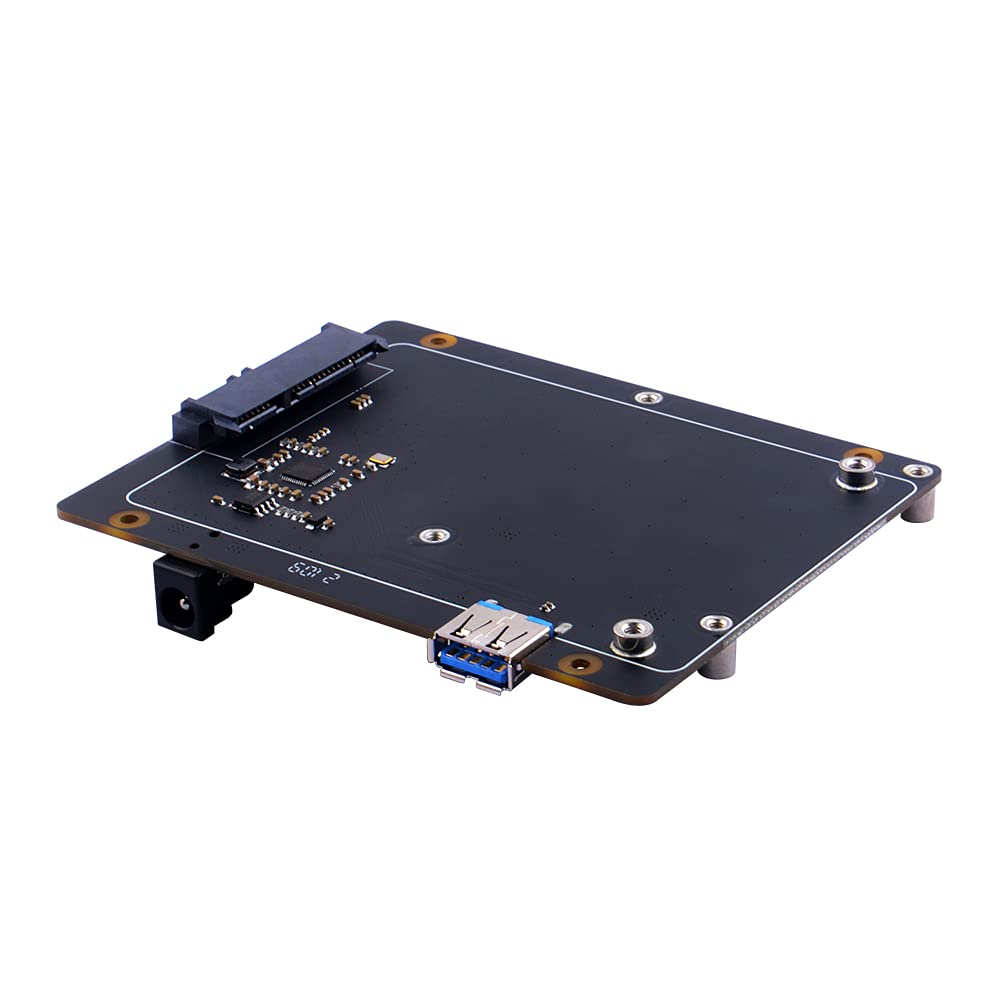

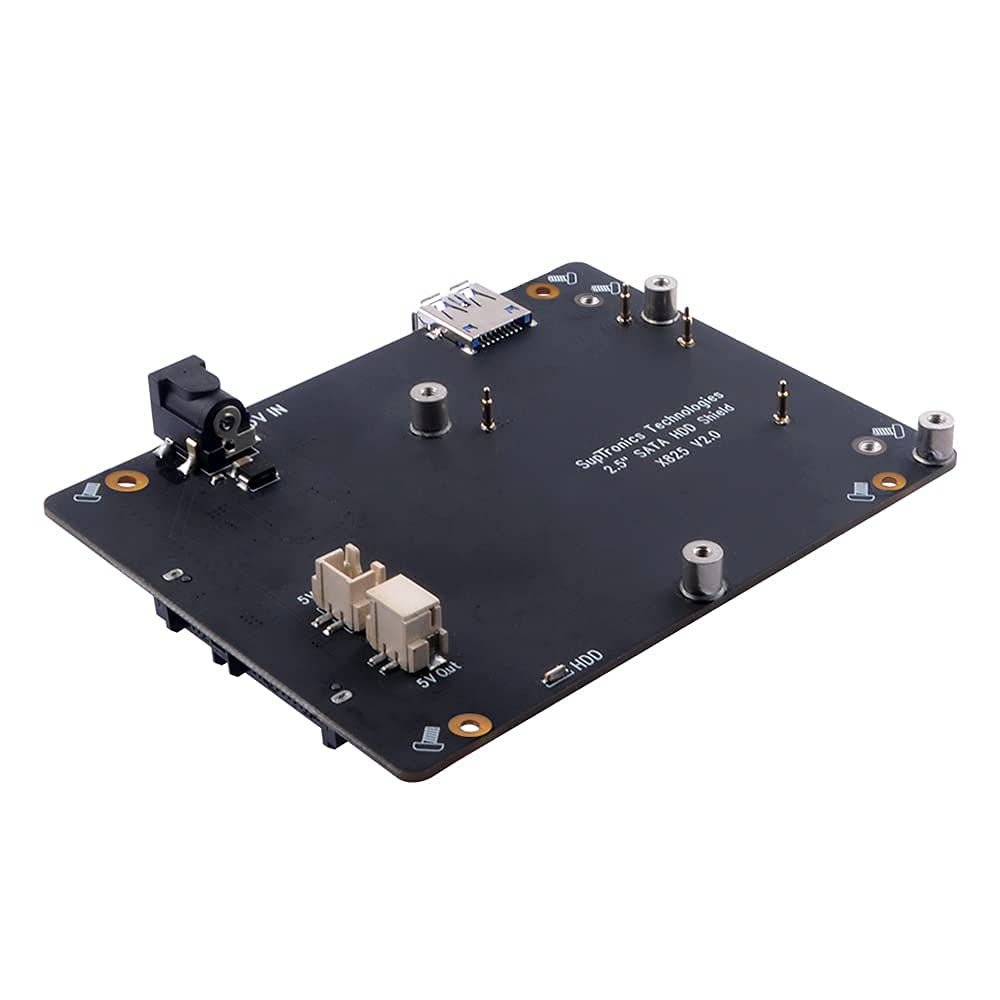

Description: The X825 is a 2.5-inch SATA HDD/SSD storage expansion board for Raspberry Pi 4 Model B. It allows you to create your own cloud storage or private NAS storage system at home. The X825 expansion board provides a complete storage solution for the latest Raspberry Pi 4B. It supports up to 4TB of 2.5-inch SATA hard disk drives (HDD)/solid-state drives (SSD). Only 2.5-inch SATA interface HDD/SDD hard disks are suitable for the X825 board. It has been upgraded to a USB 3.1 Gen 1 port.
Features:

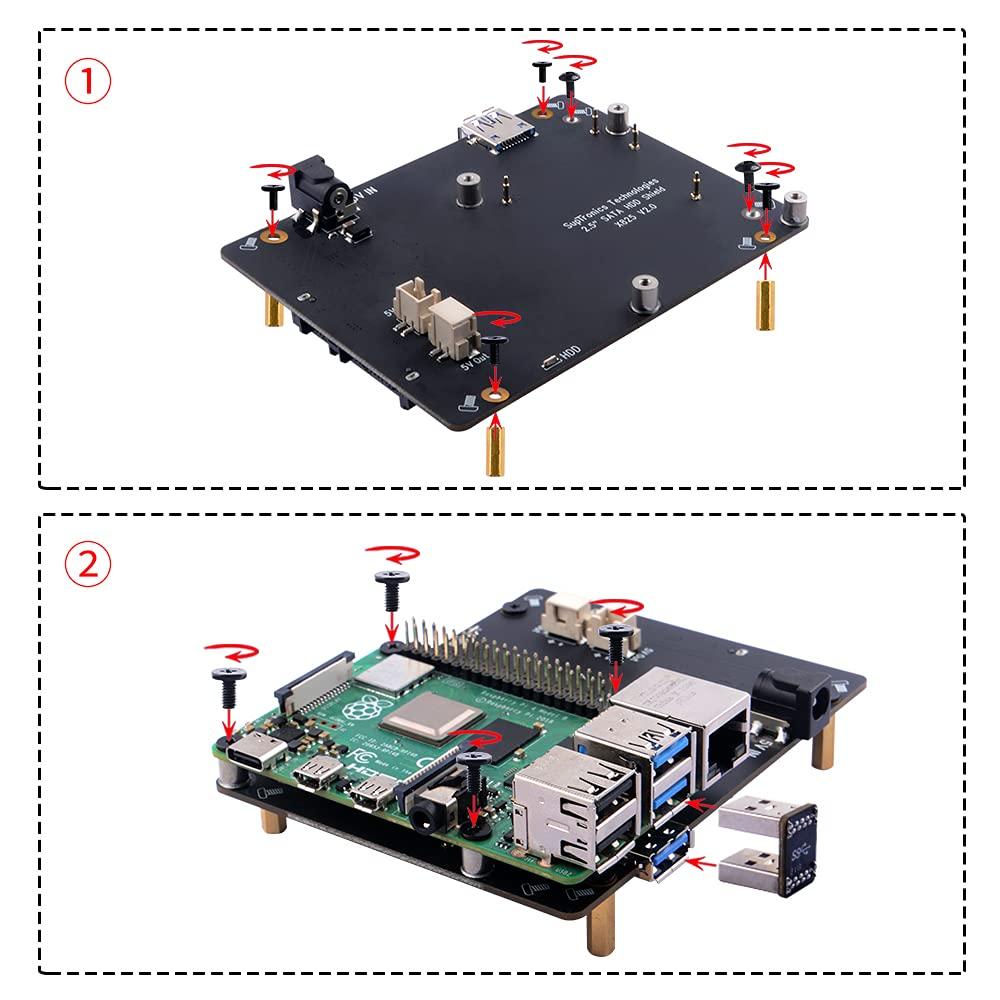

Easy to assemble OS compatible: all Raspberry Pi operating systems USB 3.1 Gen 1 port Supports up to 4TB of 2.5-inch SATA hard disk drive (HDD)/solid state drive (SSD) (In theory it will also work with 6TB or 8TB, but we have not actually tested the X825 board with 6TB or 8TB HDDs. You may want to try it out.) Ideal storage solution for Raspberry Pi 4 Model B Onboard push button for power on/off control (press - on, hold button for more than 2 seconds - off) Powers Raspberry Pi via the Pi's 40-pin header LED red indicator shows power status, blue indicator shows drive status USB 3.1 Gen 1 to SATA 6Gb/s bridge controller Fast file transfers over high-speed USB 3.1 connection from PC or Mac Powers your Raspberry Pi - no additional power supply required for RPi4

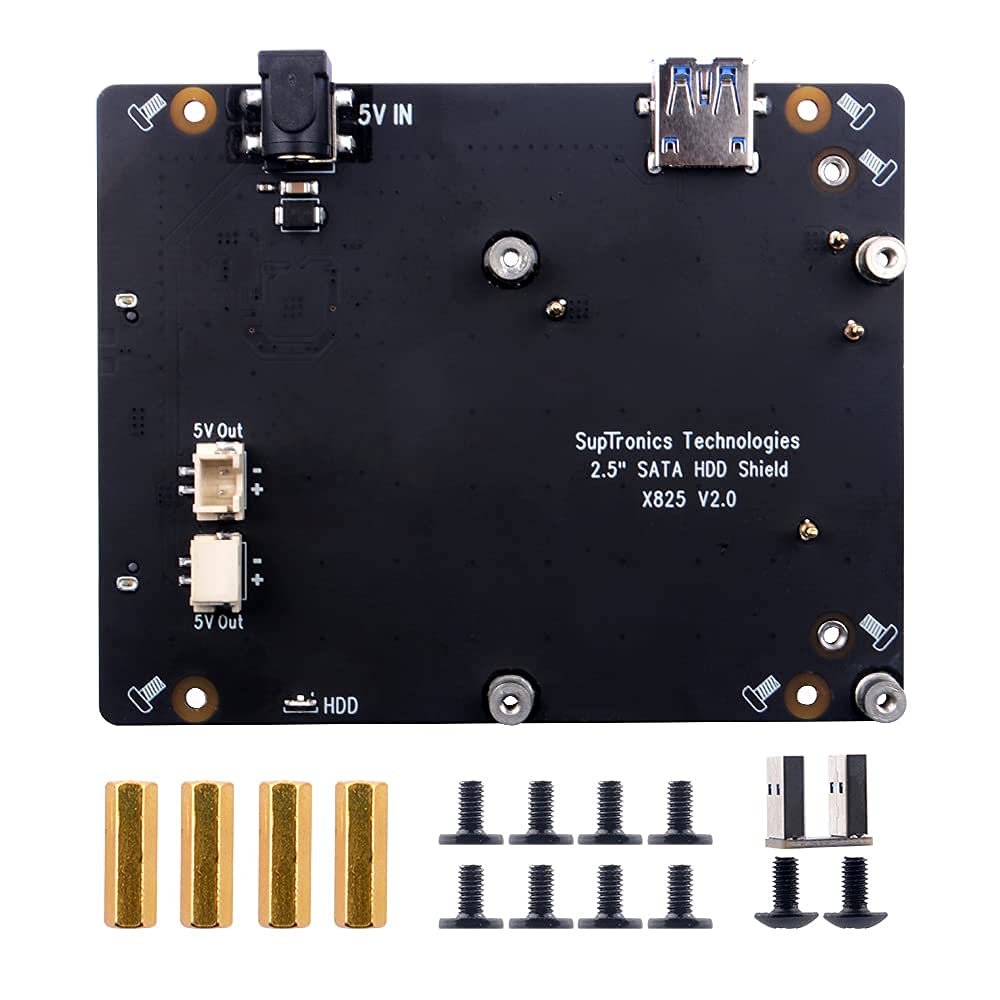

Package includes: 1 x X825 V2.0 Expansion Board 1 x USB3.1 Connector 1 x Mounting Screw Package
Note: Raspberry Pi and 2.5" SATA SSD are not included.
