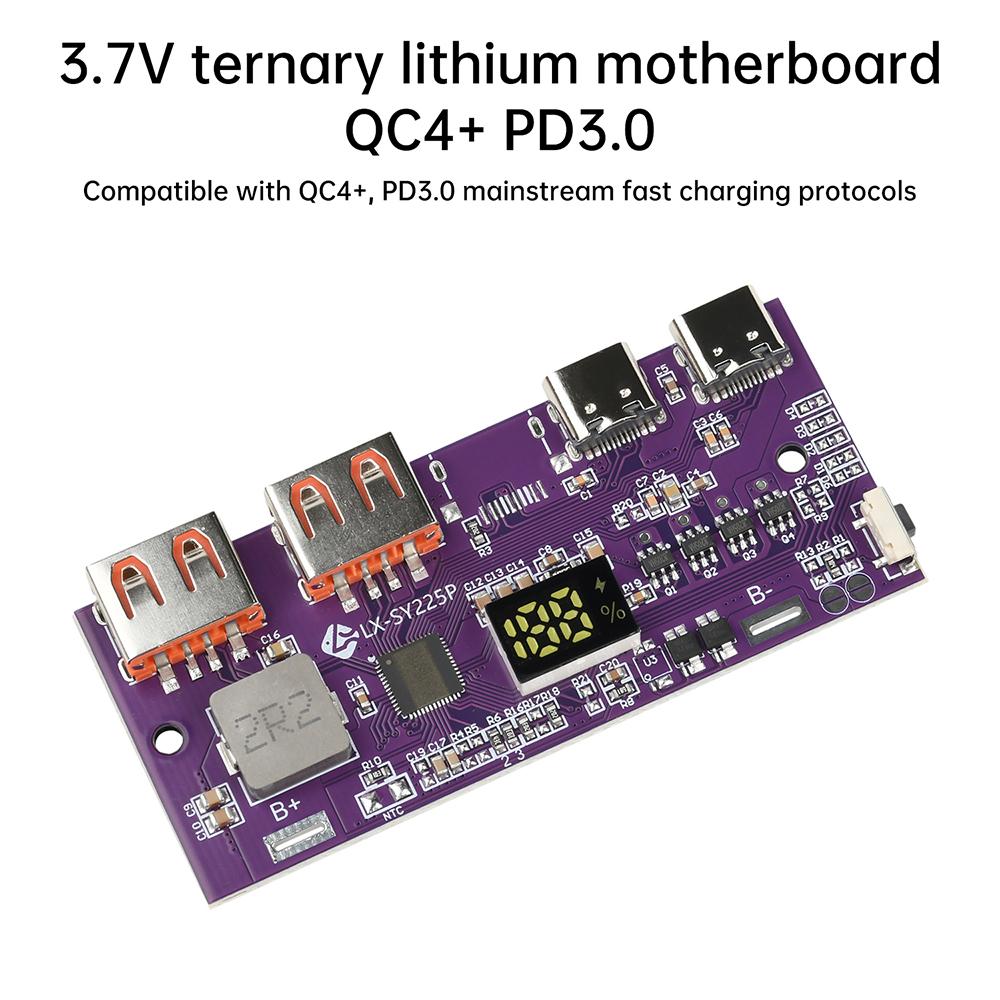

Ternary Lithium Battery LED 3.7V 22.5W Type-C/ USB Mobile Power Bank Charger Module Temperature Circuit Protection Board

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : As Description Application : MOBILE PHONE Type : Voltage Regulator Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : Ternary Lithium Battery Charger Key Word : Mobile Charger Module Dropship : Support

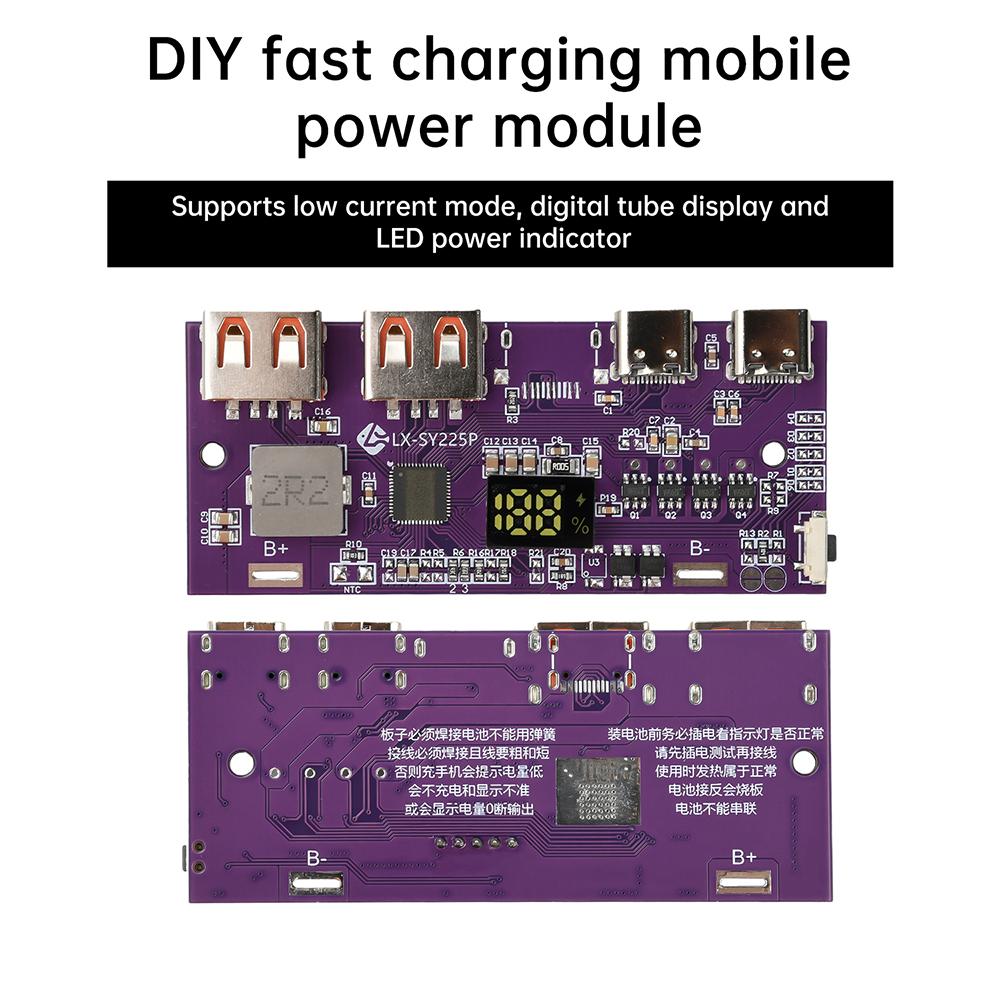

Features 1. Support 22.5W high-power fast charging output to meet the needs of fast charging and improve the efficiency of use 2. Compatible with QC4+ and PD3.0 mainstream fast charging protocols, adaptable to a variety of devices, and enhance versatility 3. The product supports low current mode, supports digital tube display and LED power indication, and is more convenient to use 4. Designed specifically for 3.7V ternary lithium batteries, providing stable and efficient energy conversion and protection mechanism 5. Suitable for DIY mobile power projects, easy to personalized fast charging solutions

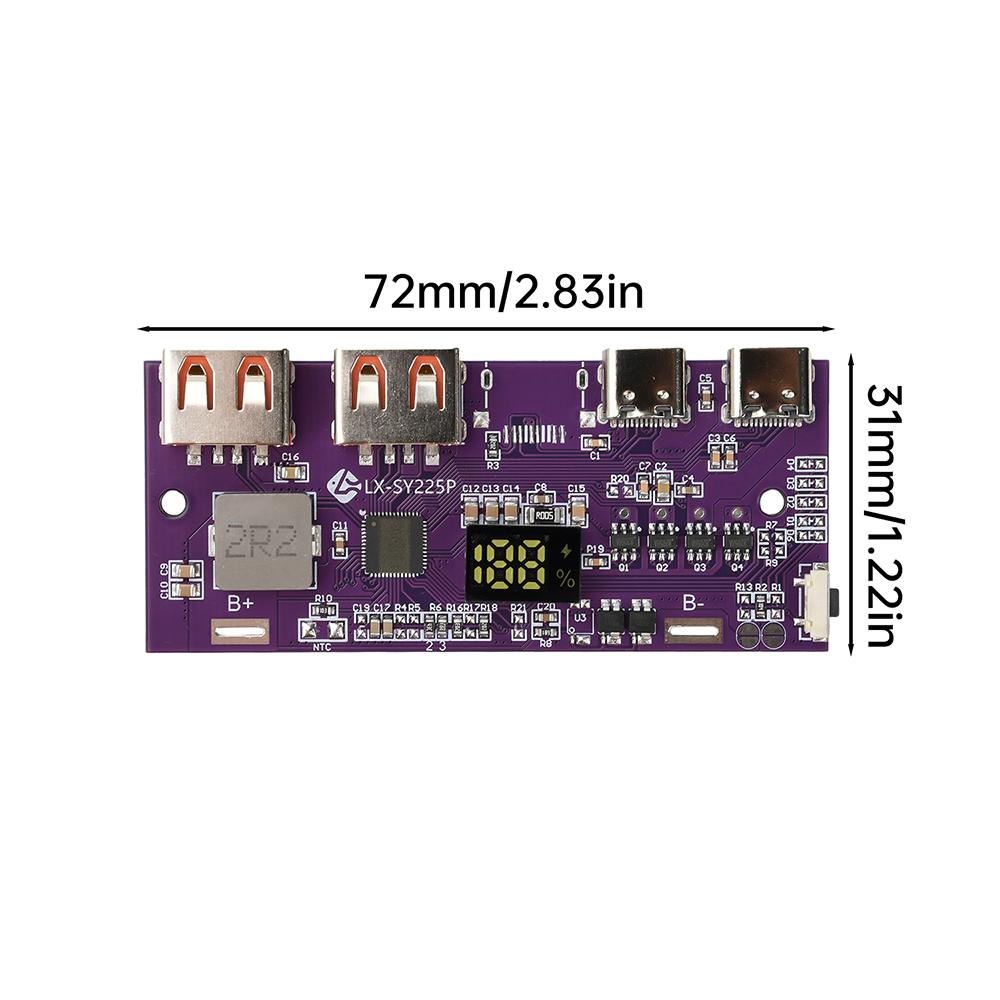

Module interface: The product is suitable for single-string 3.7V (full 4.2V) ternary lithium batteries Button: When short-pressed, open the USB port and light-load Type-C output port to discharge and display the power When double-clicked, close the USB port and Type-C output port, power display If there is an external If the power supply exists, only the output port is closed Type-C port: supports input and output USB port: high current output interface B+: positive battery interface, must be welded when used, the wire must be thick and not too long B-: negative battery interface, must be welded when used, the wire must be thick and not too long After the module is wired, use a multimeter to measure whether the voltage of the B+ and B- contacts during charging and discharging of the module is consistent or the difference is very small. If the difference is large, there is a problem with the wiring or the battery is aging

Supported protocols: Support BC1.2/5V2.4A Support PD2.0/PD3.0 Support QC2.0/QC3.0/QC4.0 Support AFC, FCP, SCP, PPS, SFCP Support VOOC, DASH, WARPPE2.0, PE1.1

Package list Fast charging motherboard module*1 (optional style) label:yes

Connector type: type-c GaN support: no Plug type: European socket Number of ports: 1 port
