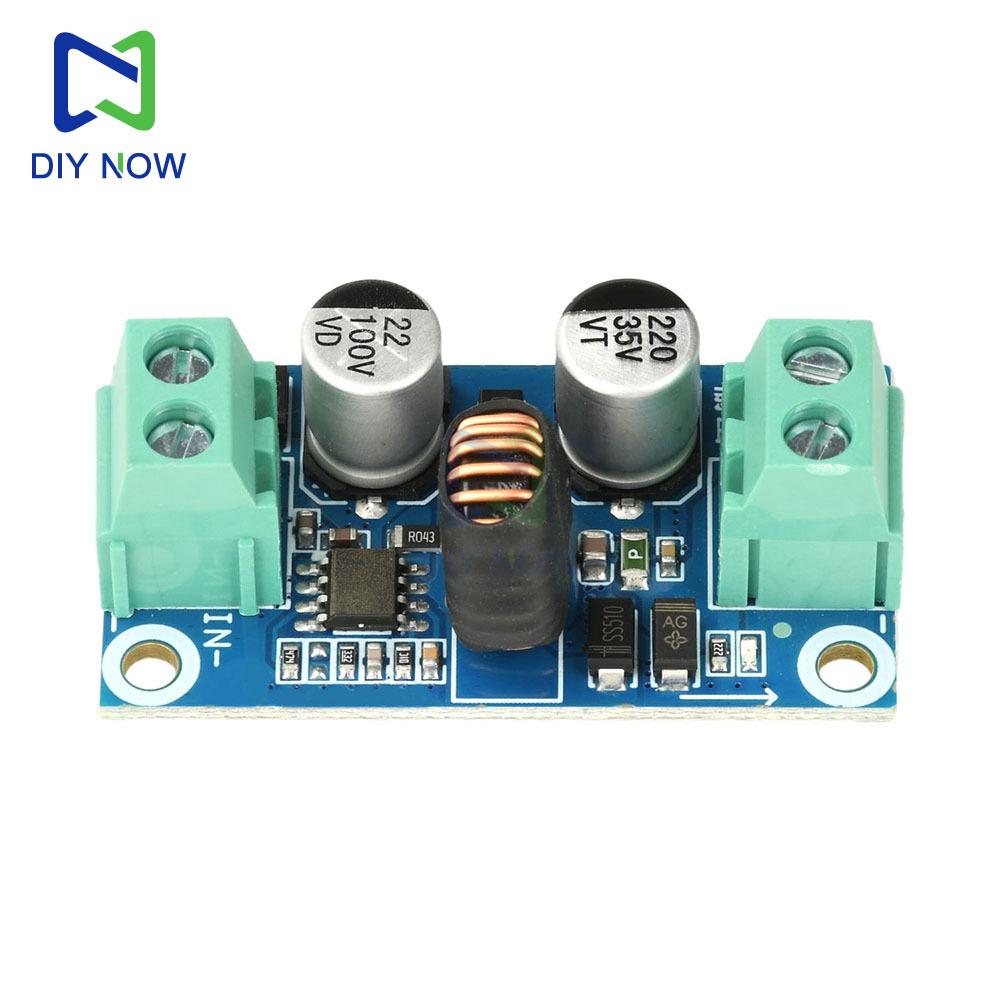

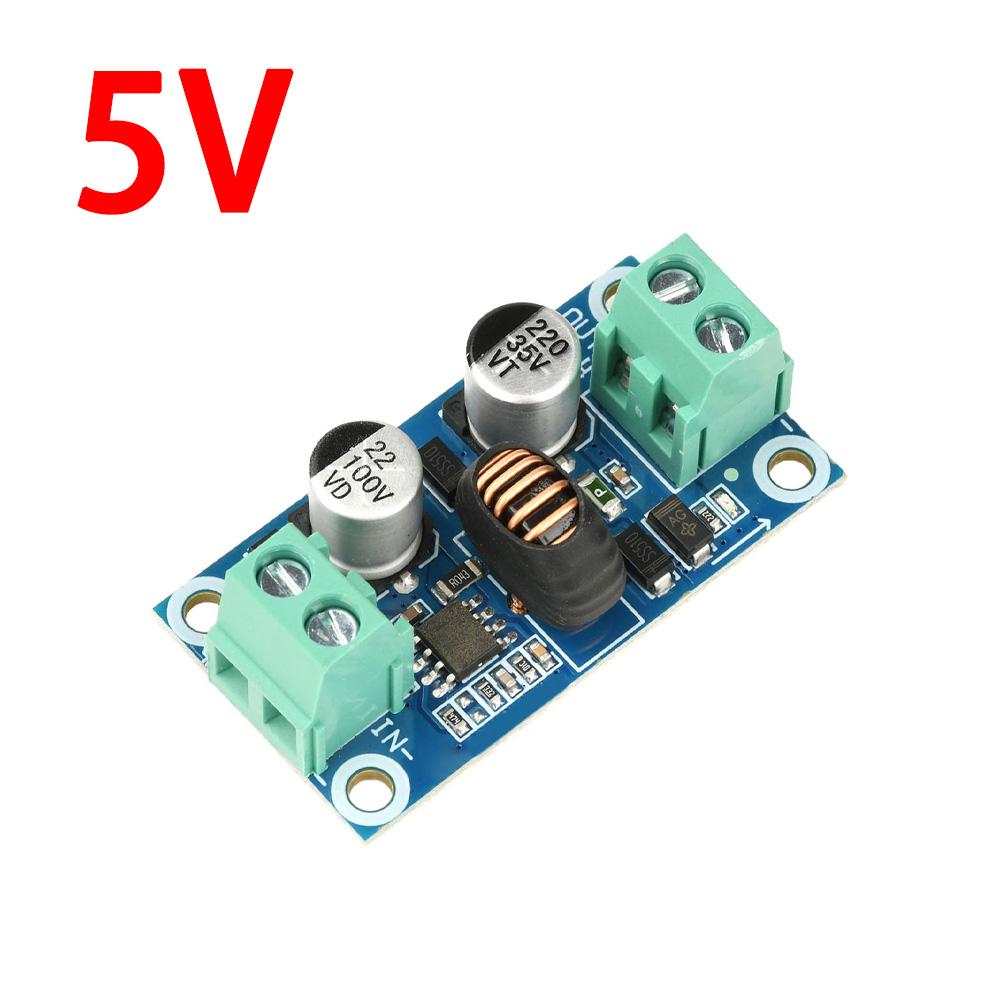

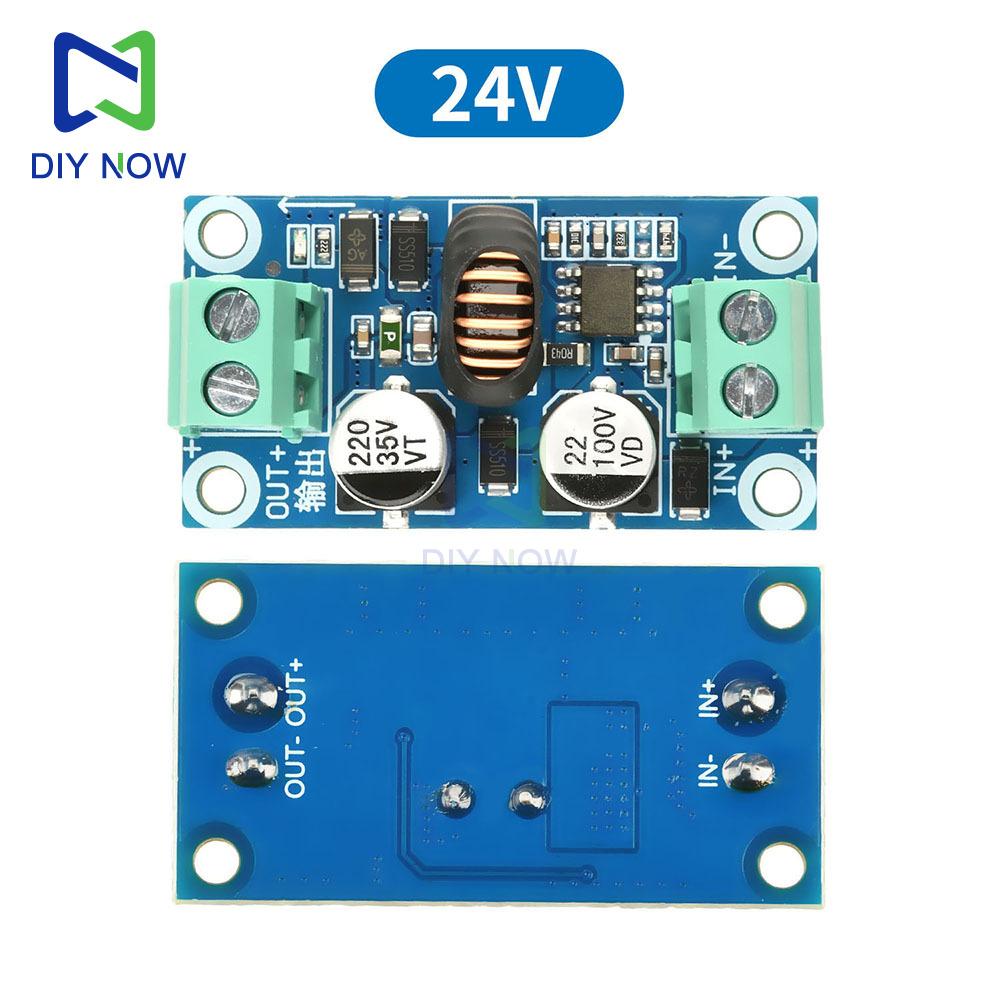

10-100V to 5V 12V 24V 3A DC-DC Buck Converter Step Down Power Supply Module with Short Circuit Over Temperature Protection

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Type : buck (stepdown) regulator Brand Name : DIY NOW Origin : Mainland China Condition : New

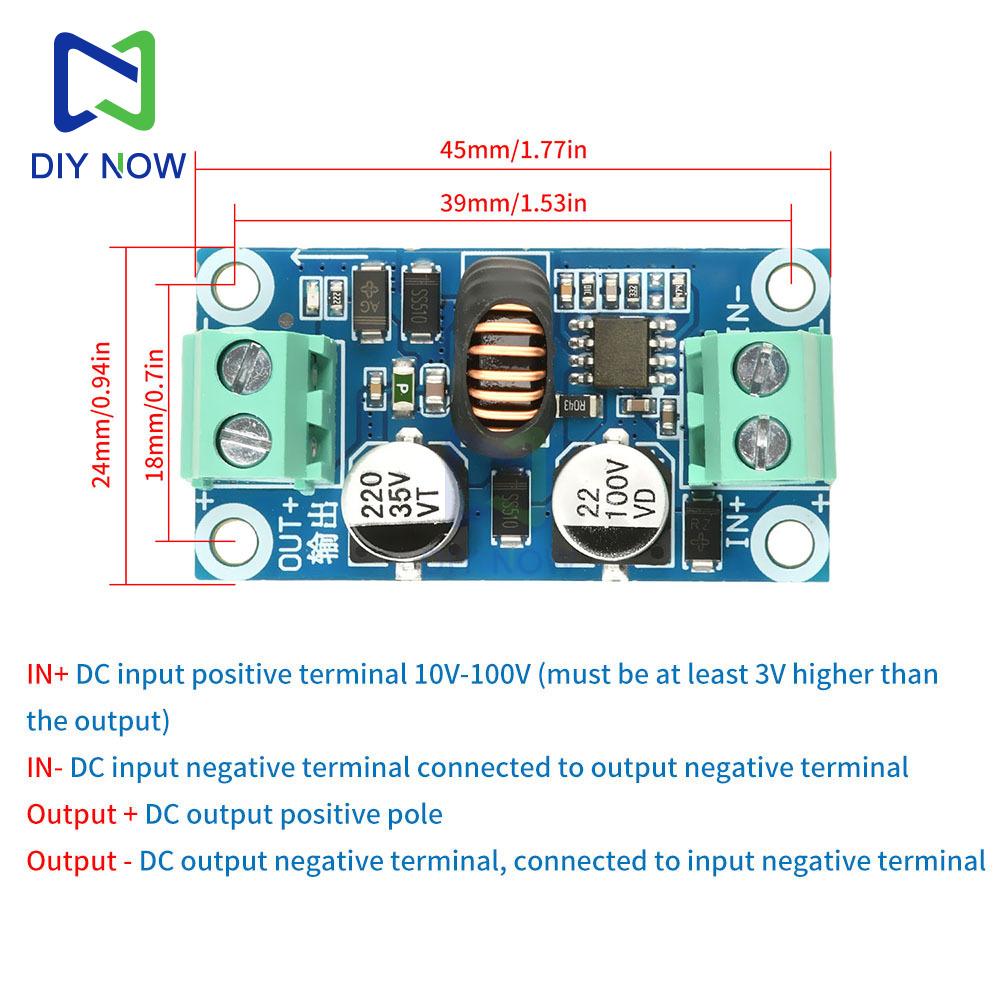

Features 1. Supports a wide input voltage range of 10-100V, compatible with various power systems, ensuring strong compatibility 2. Provides three fixed voltage outputs: 5V, 12V, and 24V, meeting diverse device power supply requirements 3. Maximum output current of 3A, with conversion efficiency up to 93%, low power consumption, and stable, reliable operation 4. Built-in output short-circuit protection and over-temperature protection ensure device and circuit safety 5. Standby current as low as 1-10mA, offering significant energy-saving benefits, ideal for applications sensitive to power consumption Parameter Input voltage: DC 10V-100V (must be at least 3V higher than the output) Output voltage: DC 5V/12V/24V (selectable) Maximum operating current: 3A Standby current: 1-10mA Conversion efficiency: up to 93% Temperature range: -40°C to +85°C Includes output fuse and TVS Output short-circuit protection Built-in over-temperature protection Notes: The product features TVS on both input and output, with an output fuse to ensure safer system power usage. High-frequency capacitors effectively reduce heat generation and ripple. The peak current is 3A, but it is recommended to use a current of 2.5A or below to avoid board overheating and power reduction. It is advised to leave some margin during use to prevent peak voltages or surges from causing the application to exceed its operating range. Package include Module x1 label:yes
