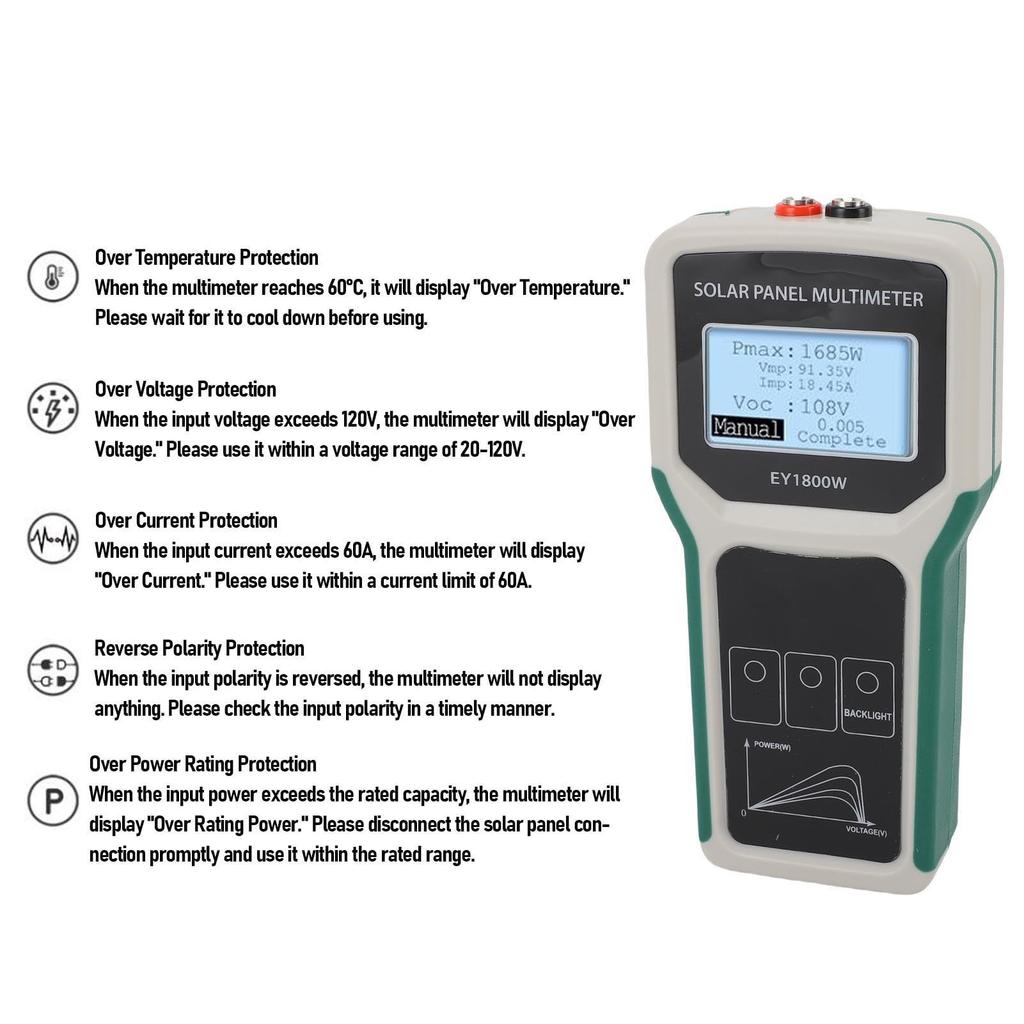

6. Multiple Protection Mechanisms: Designed with safety in mind, this multimeter includes over-temperature, over-voltage, over-current, reverse polarity, and over-power protection to ensure safe operation. Current, DC voltage.
Product Size: Approx. 16.5x8x3cm / 6.5x3.15x1.18in
Power Source: Solar Panel
Display: LCD Display
Backlight: Yes
Power: 5-1800W
Voltage: 20-120V
Material:
Working Current: 0-60A
Switch: Automatic Manual Test Mode
2. Over-intake, Over-voltage, and Over-current Protection
3. Solar Panel Reverse Connection Protection
4. Rated Power Protection
5. No Additional Power Supply Required
Features: Tests the Maximum Power Point and Open Circuit Voltage of Solar Panels

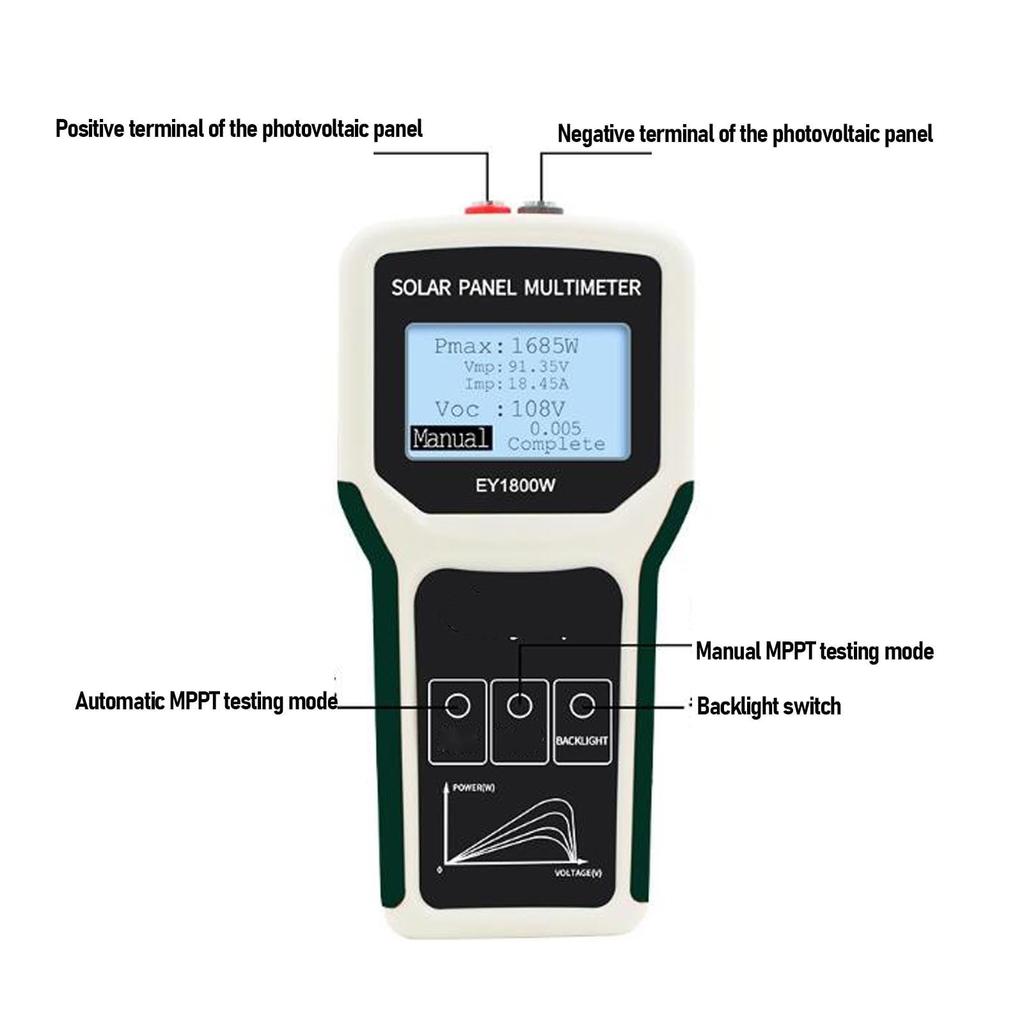

Automatic MPPT Detection: Press the Auto Test button; the instrument will automatically adjust the test interval based on the current power value and refresh the display. ) At 100W, it updates approximately once every 5 seconds; at 350W, it updates once every 15 seconds.

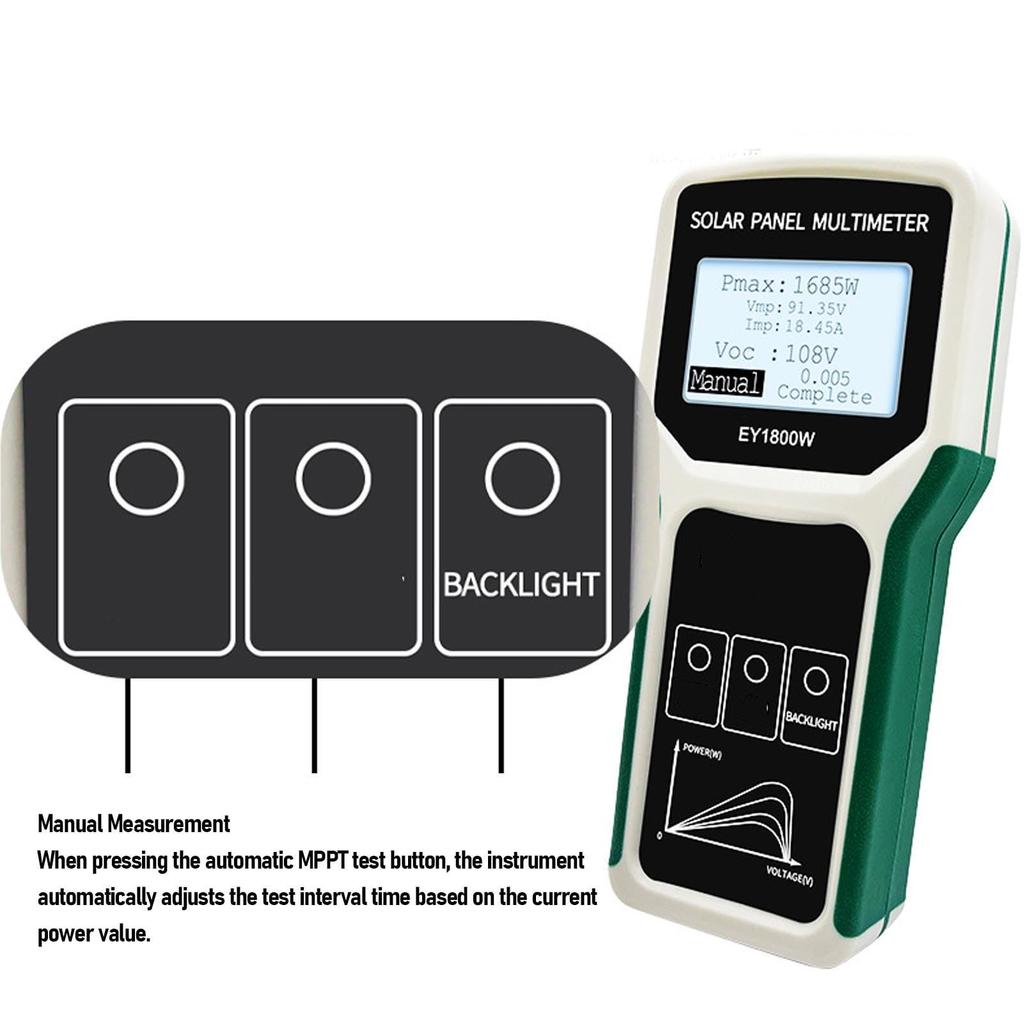

Manual MPPT Detection: Press the manual test button; the instrument will scan for the maximum power point once and update the display once. Check the input polarity. If the device is not displayed, this may be due to reverse polarity protection.
Clear Backlight: Equipped with a high-resolution LCD screen and backlight, this multimeter provides excellent visibility even in direct sunlight, making results easy to read and interpret.
Solar Power Design: This solar panel multimeter is powered directly by solar panels without the need for an additional battery, providing a cost-effective solution to your measurement needs.
Data Display: PMAX indicates the maximum power point power; VMP indicates the maximum power point voltage; IMP indicates the maximum power point current; VOC indicates the open-circuit voltage.
Maximum Power Point Test: This MPPT solar panel multimeter can accurately test the maximum power point and open-circuit voltage, providing important data for optimizing solar panel performance. Manual Auto Mode: In manual measurement mode, the multimeter will automatically adjust the test interval according to the current power value. The higher the power, the longer the interval and refresh the digital display. In automatic measurement mode, the multimeter will test according to the current power value and refresh the digital display.
