Feature:
1. Applicable Model: OBD2 diagnostic interface is a special PC based diagnostic interface especially replacement for Opel Vectra?C, replacement for Opel Astra?H, replacement for Opel Zafira?B etc.
2. Car Code Reader: The diagnostic interface allows you to read and clear fault codes, display realtime data, and allow you to perform output tests.
3. Supports Multiple Control Units: Such as engine, automatic transmission, ABS, SRS, engine cooling module, instrument panel, electronic climate control, body control unit, etc.
4. Multiplexer Function: Since many pins used in the OBD connector replacement for Opel, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
5. Fault Code and Information Display: Displays complete status information (present, absent, intermittent); you can print, save or copy fault codes to any other application.
Specification:

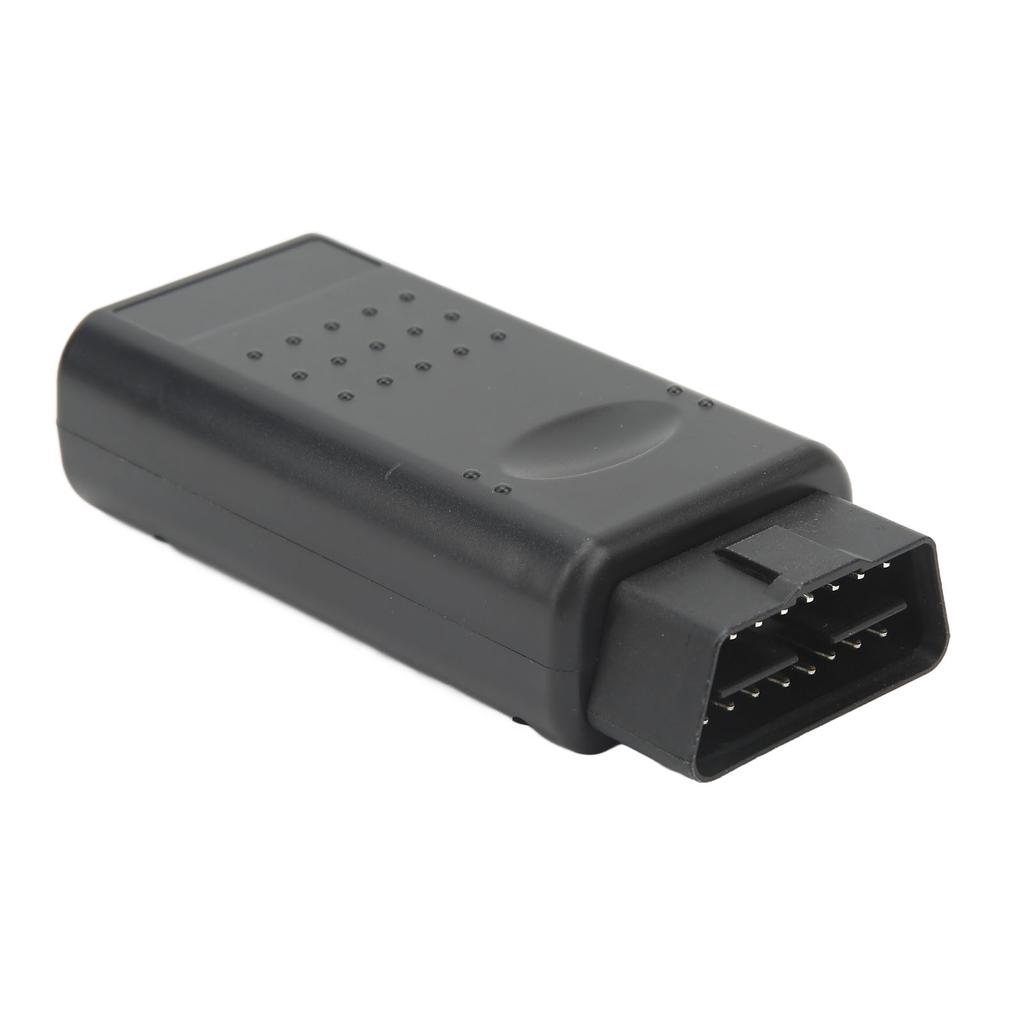

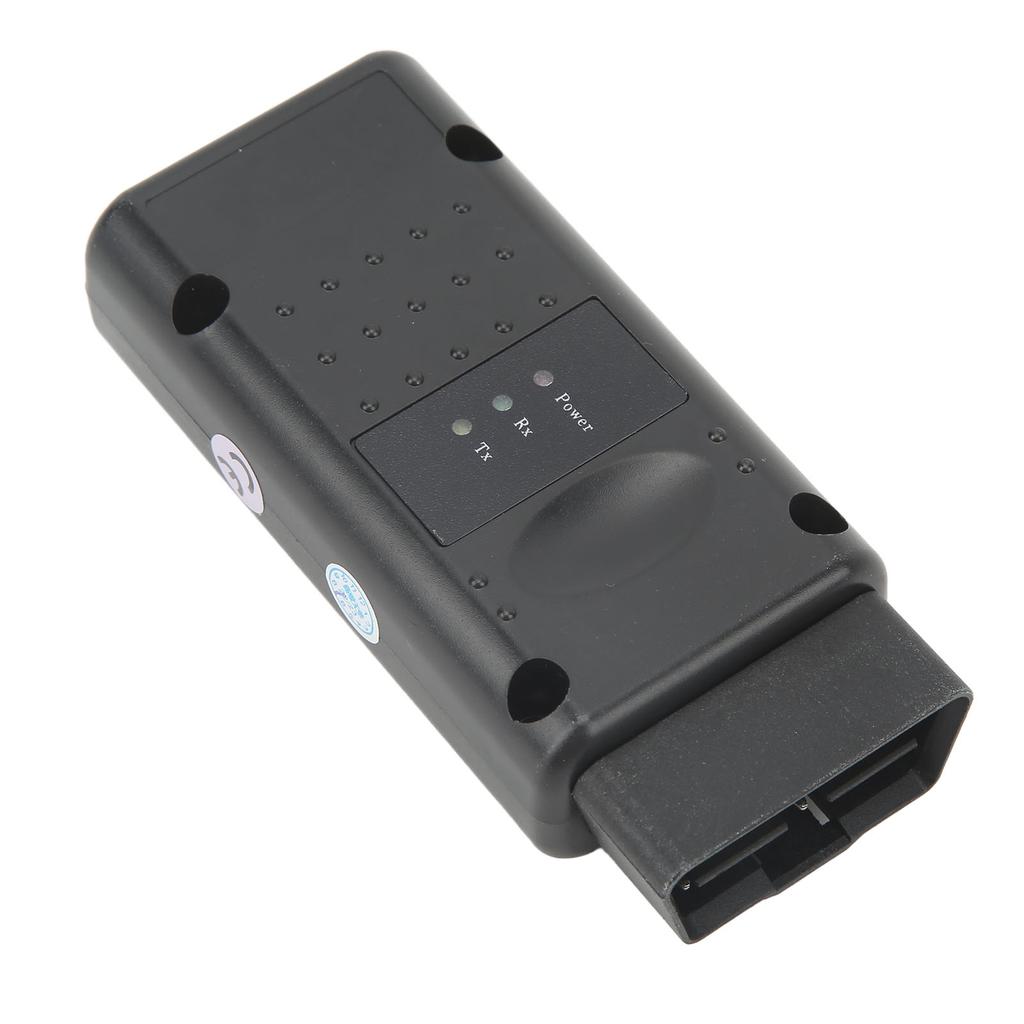

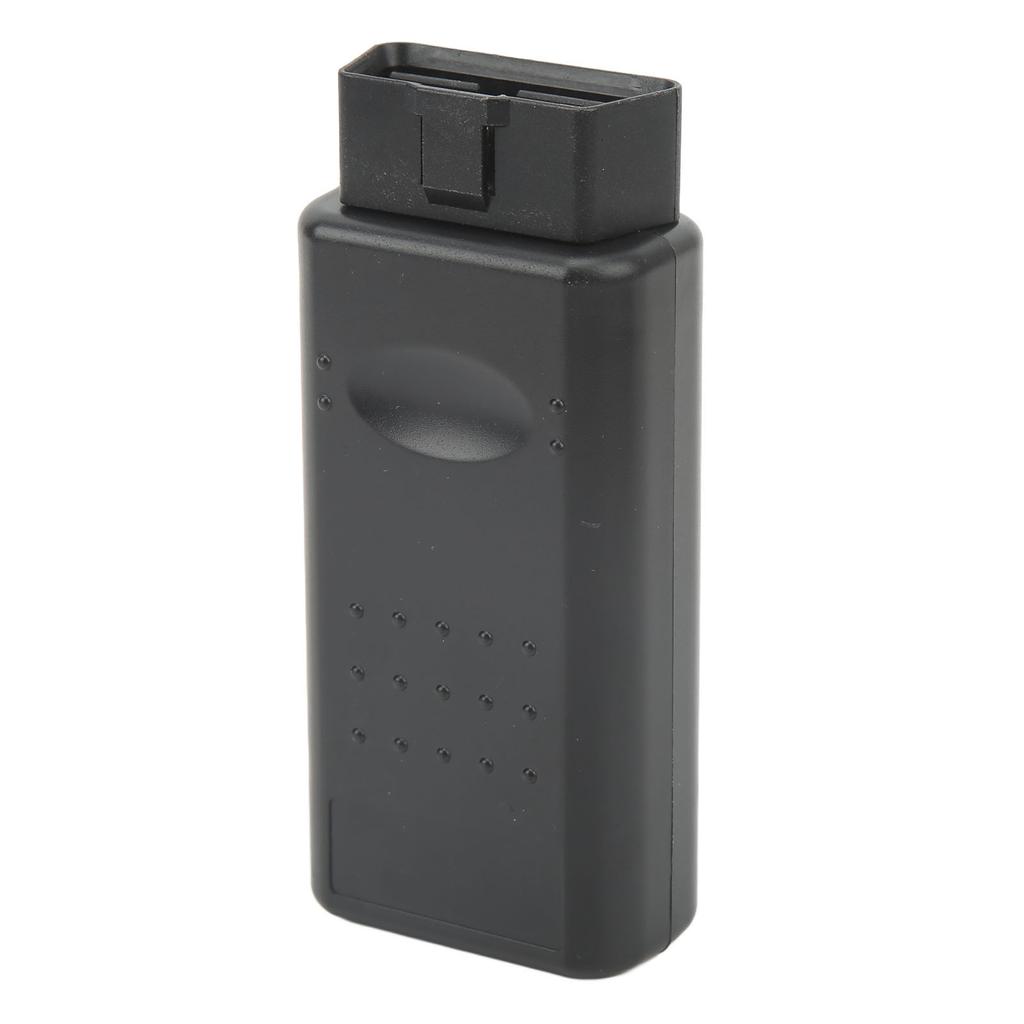

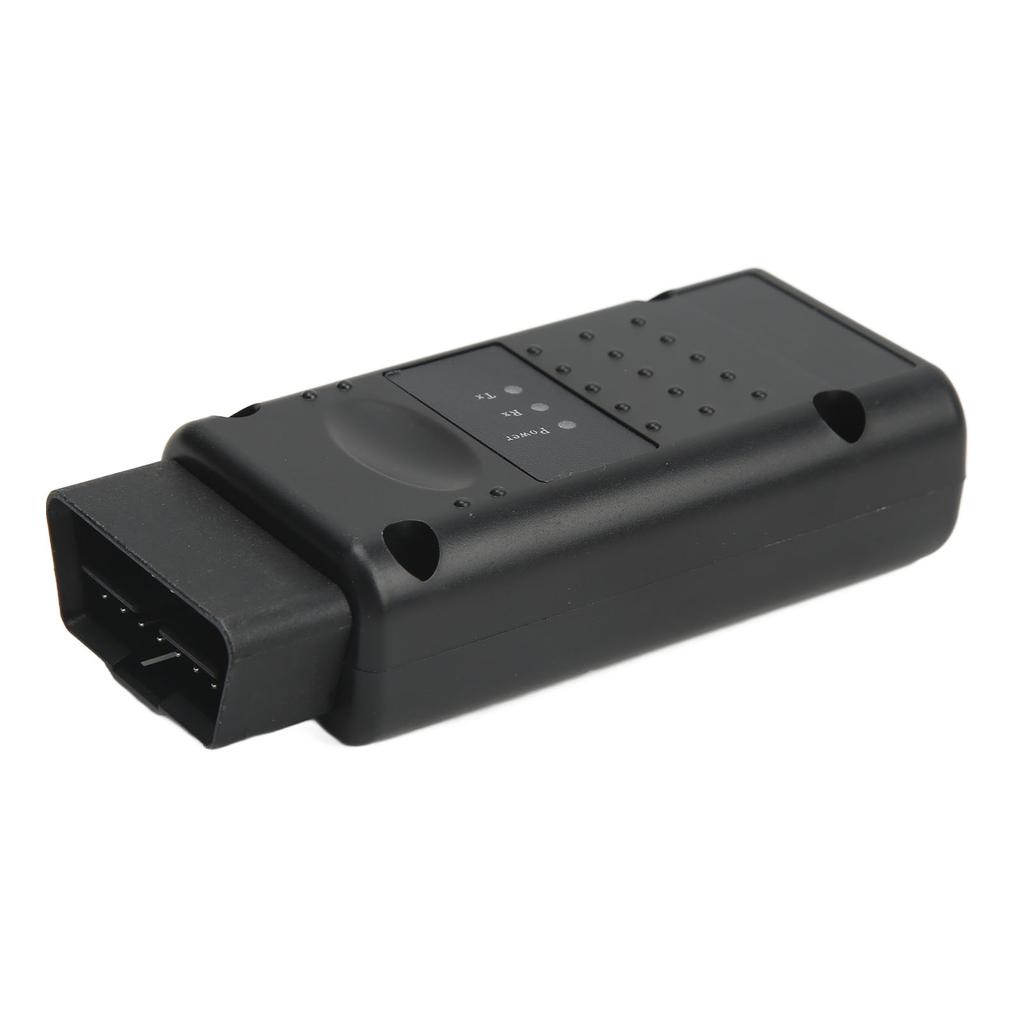

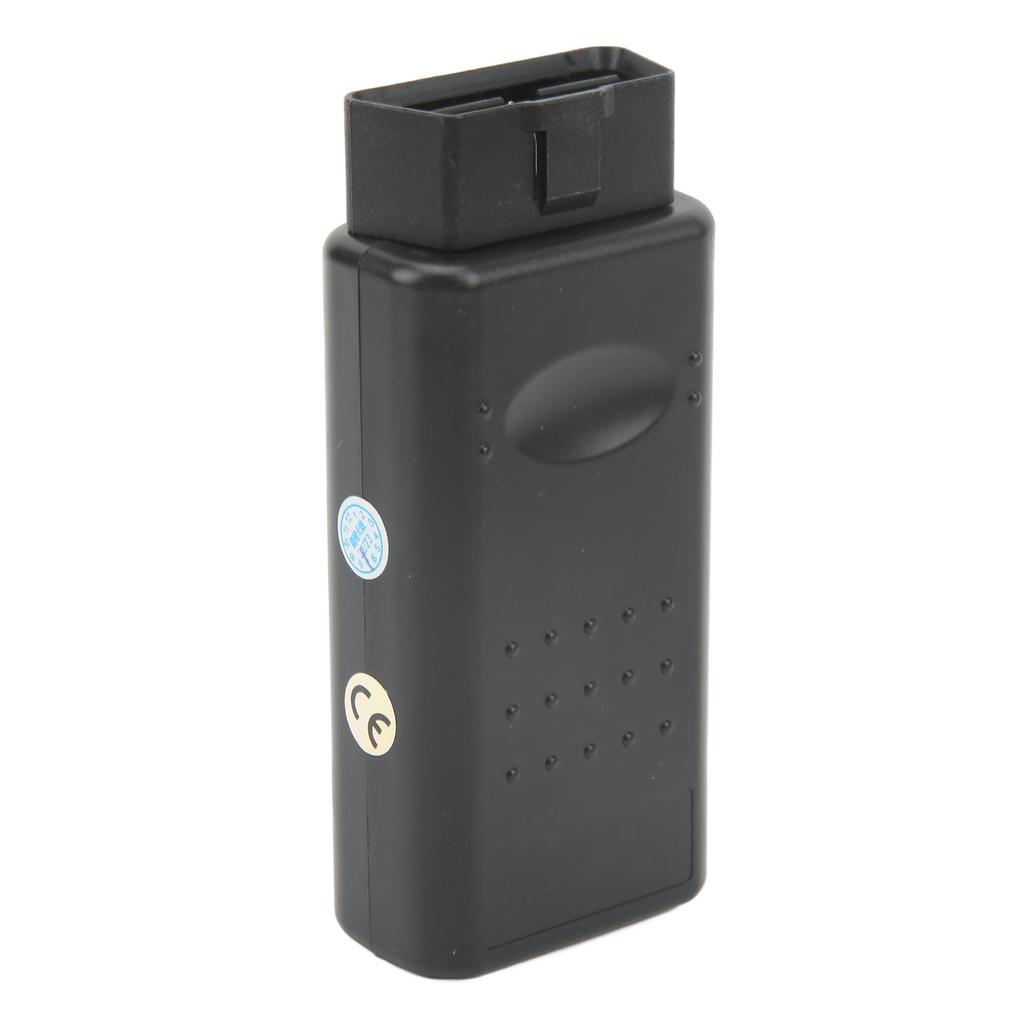

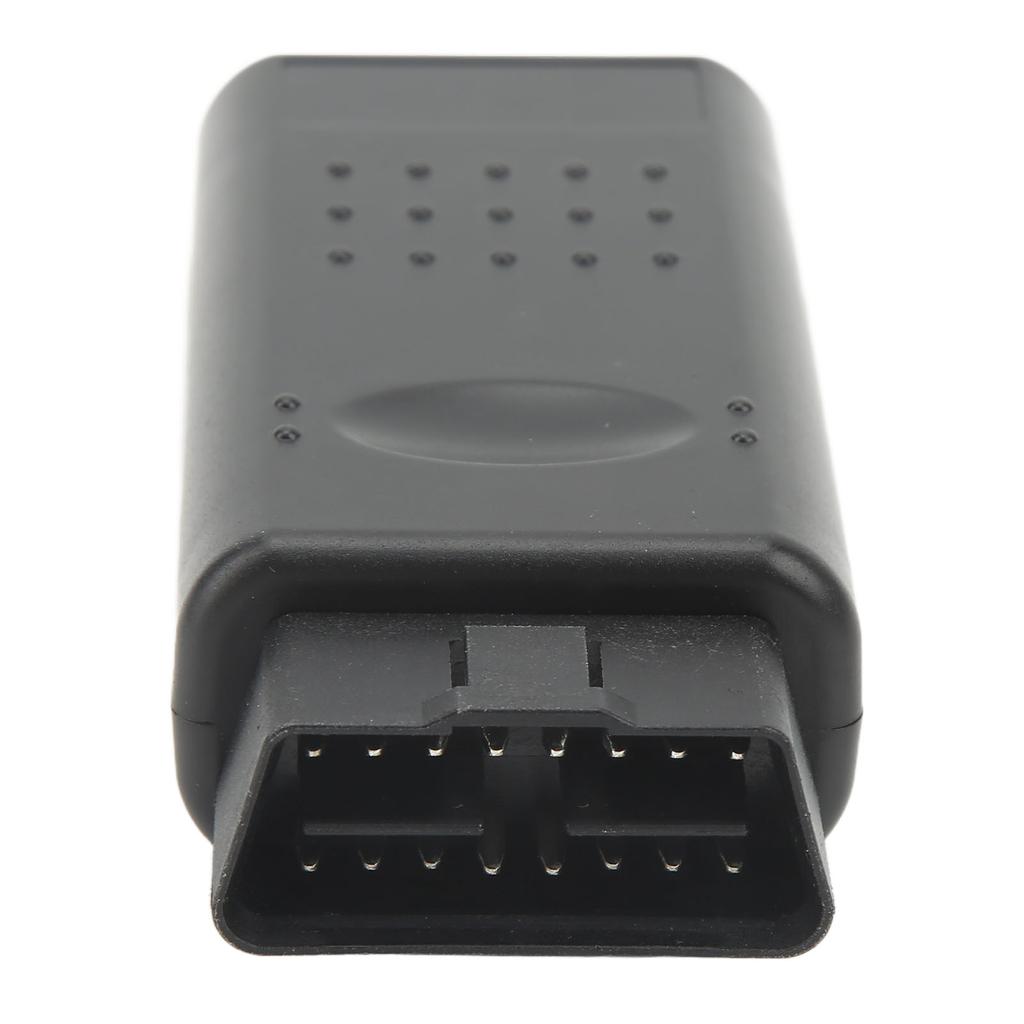

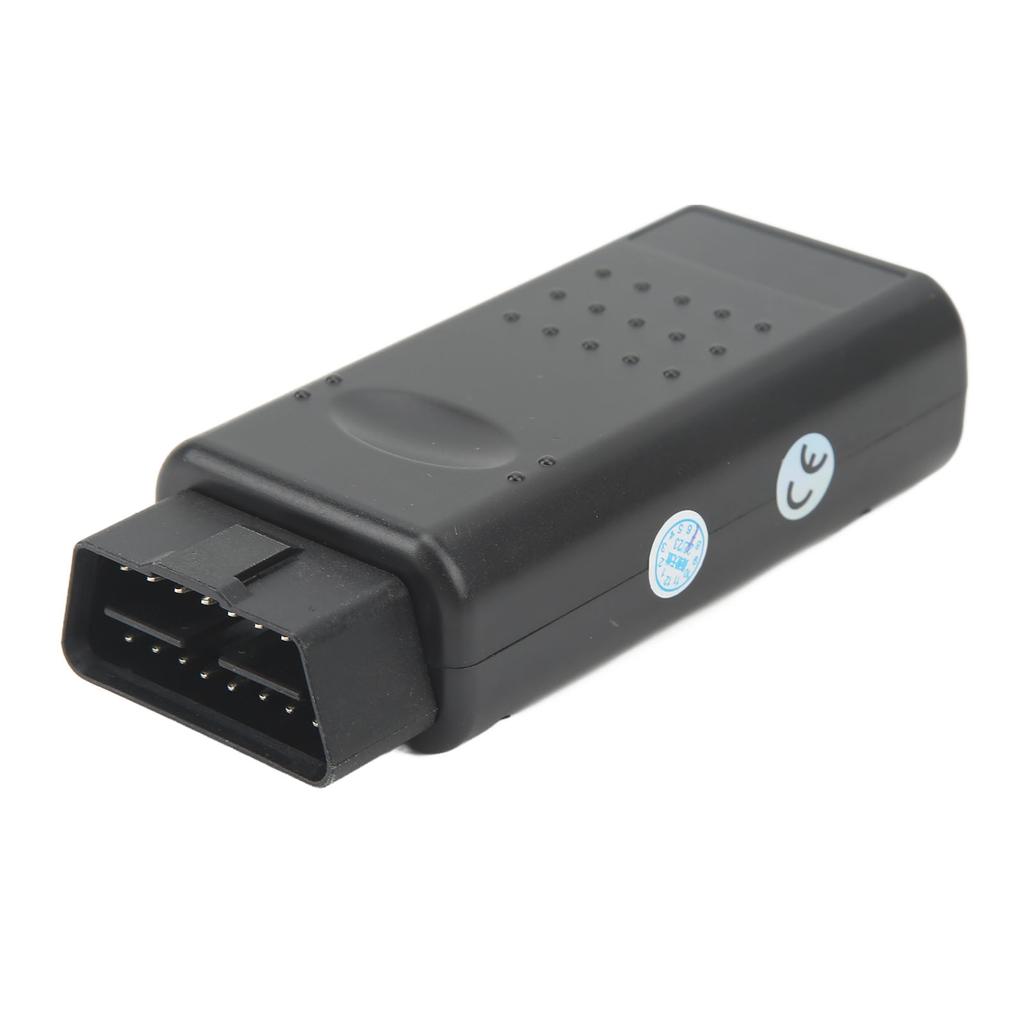

Item Type: OBD2 diagnostic interface
Material: ABS
Software Version: 120309a
Firmware Version: V1.99Function:
1. It covers almost all Models replacement for Opel cars, even new cars with CAN BUS based diagnostic, such as for VectraC, for AstraH, for ZafiraB etc.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, SRS, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since many pins used in the OBD connector replacement for Opel, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information:
Full Fault Code Text Description:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like for X 25 DT Engine (ISO 9141 2) can be very slow, during communication, while for Multec, or for Bosch units are faster (using KWP 2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers:
PIN6PIN14
PIN3PIN11
PIN1
HSCAN: Dual wire, High Speed CAN BUS, 500 kbps
MSCAN: Dual wire, Medium Speed CAN BUS, 95 kbps
SWCAN: Single wire, Low Speed CAN BUS, 33.3 kbps
Action:
1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With it, you can learn keys to immobiliser, and remote keys to the central door locking.
2. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.
3. You will need the vehicle security code, which can be found on the CAR PASS.
4. You can also reset, and program the Service interval reminder replacement for AstraG, for replacement Zafira, replacement for CorsaC, replacement for Meriva.
5. You can code SAB6, and SAB8 airbags with the software.
6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.
7. The speed of the communication over the USB BUS is enough to handle the awesome speed of the High Speed CAN BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN BUS..
Package List:

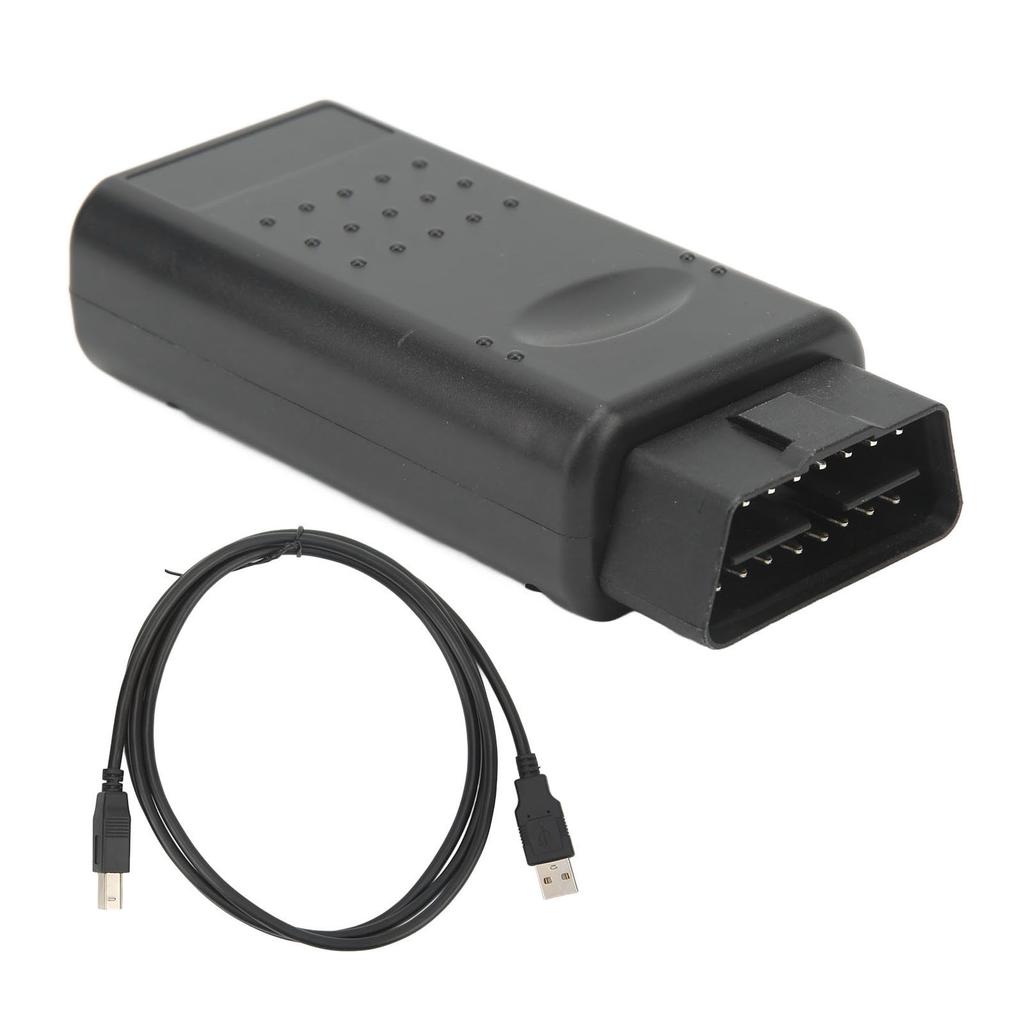

1 x Diagnostic Interface
1 x USB Cable1 x CD
Note:
1. Never update online. Online updates can damage diagnostic tools.
2. If you run it for XP or for Win7, please make sure you install dotnetfx35_SP1 system patch, or software can"t perform well.3. When you install for Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully.Applicable Model: OBD2 diagnostic interface is a special PC based diagnostic interface especially replacement for Opel Vectra?C, replacement for Opel Astra?H, replacement for Opel Zafira?B etc.
