【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
[About clocks that synchronize time via radio waves]
The function of clocks that synchronize time via radio waves only works in the Japanese area. Please be careful.
DSD TECH: DSD TECH focuses on developing communication connectivity devices such as USB/serial/wireless. We have served over 100,000 customers in Europe, North America and Japan.
Only for DMX512 protocol lighting equipment: You can control DMX512 protocol lighting equipment through this DMX512 cable. Note: This cable is not a microphone cable and cannot be used to record music.

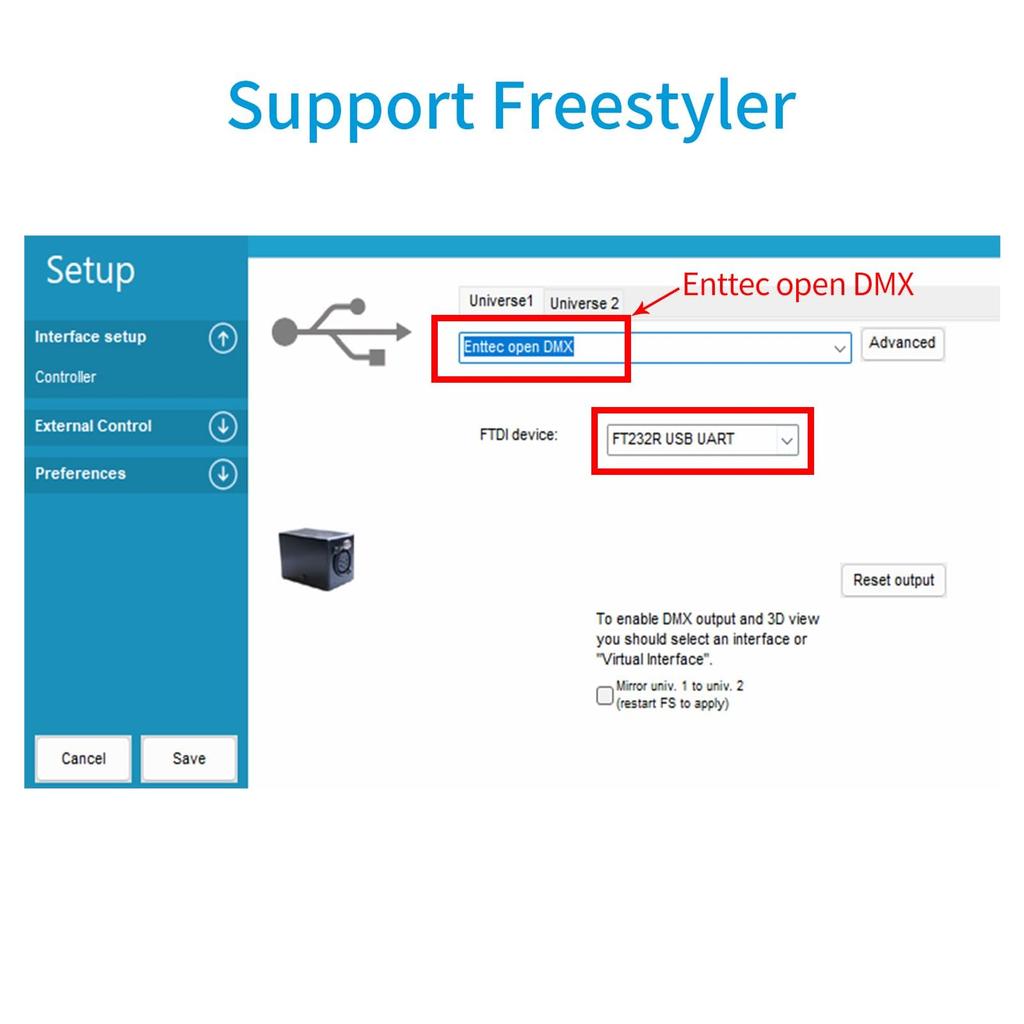

Freestyler software support: After opening Freestyler, select EnttecOpenDMX interface. Start your lighting journey.

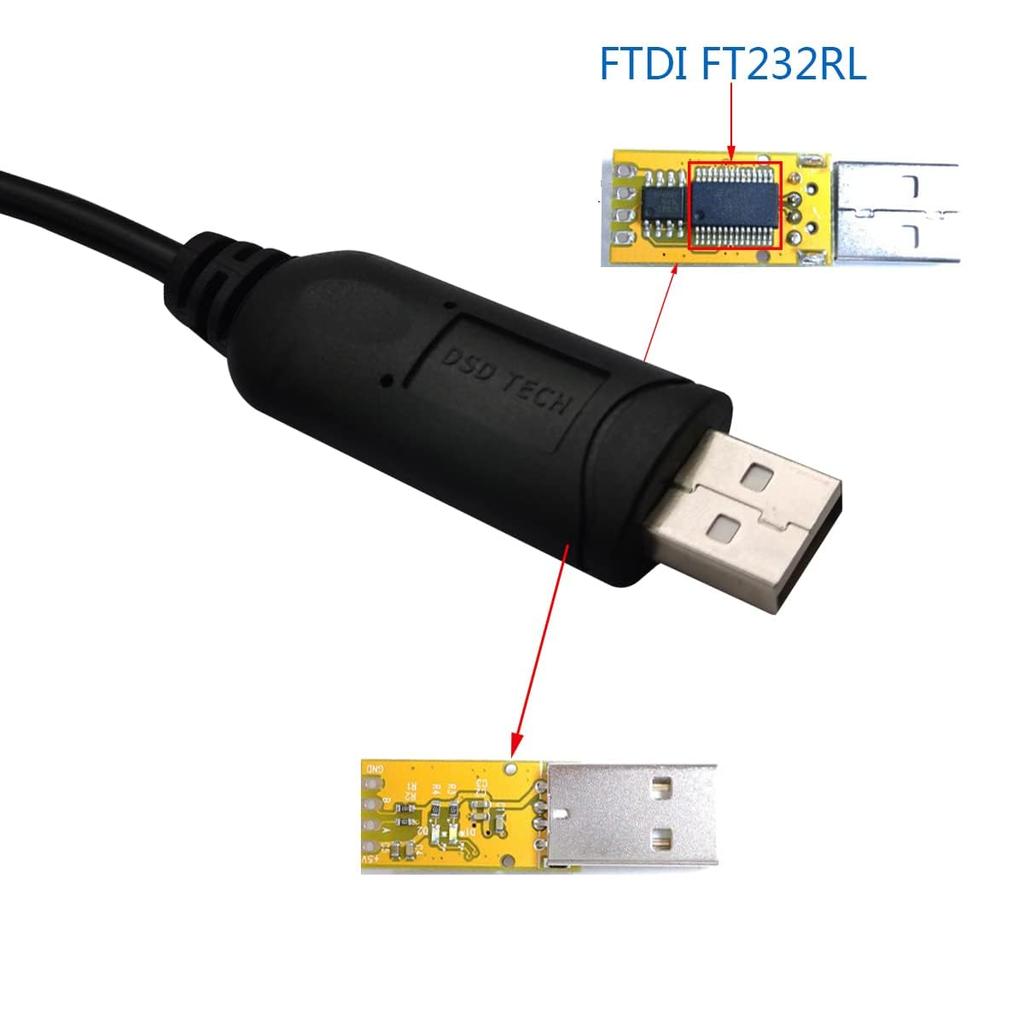

Compatibility: Built-in FTDI FT232RNL/FT232RL chip, no need to worry about driver issues. Works with Windows 11, 10, 8, 7, Linux, Mac OS, etc.
Warranty: DSD TECH provides a 1 year warranty and lifetime technical support for this USB to DMX512 cable. We will respond within 24 hours.

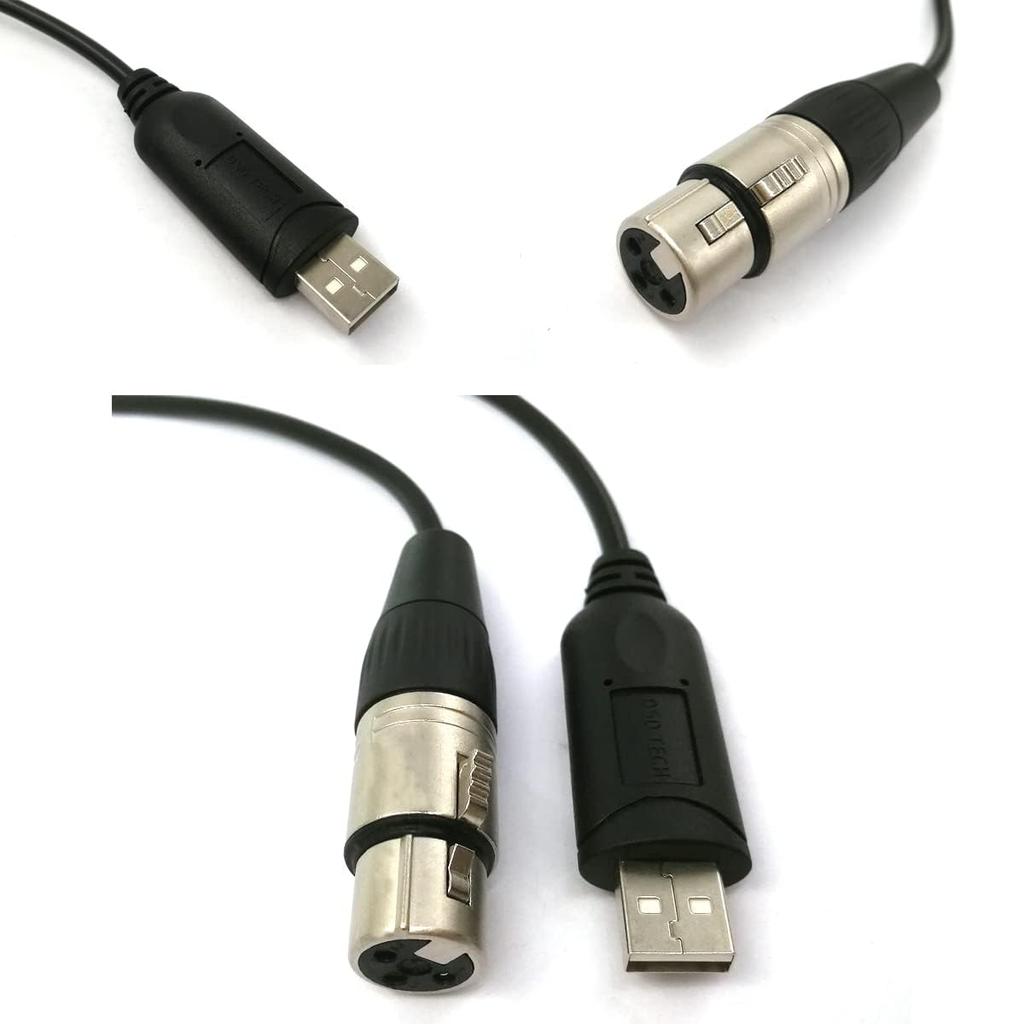

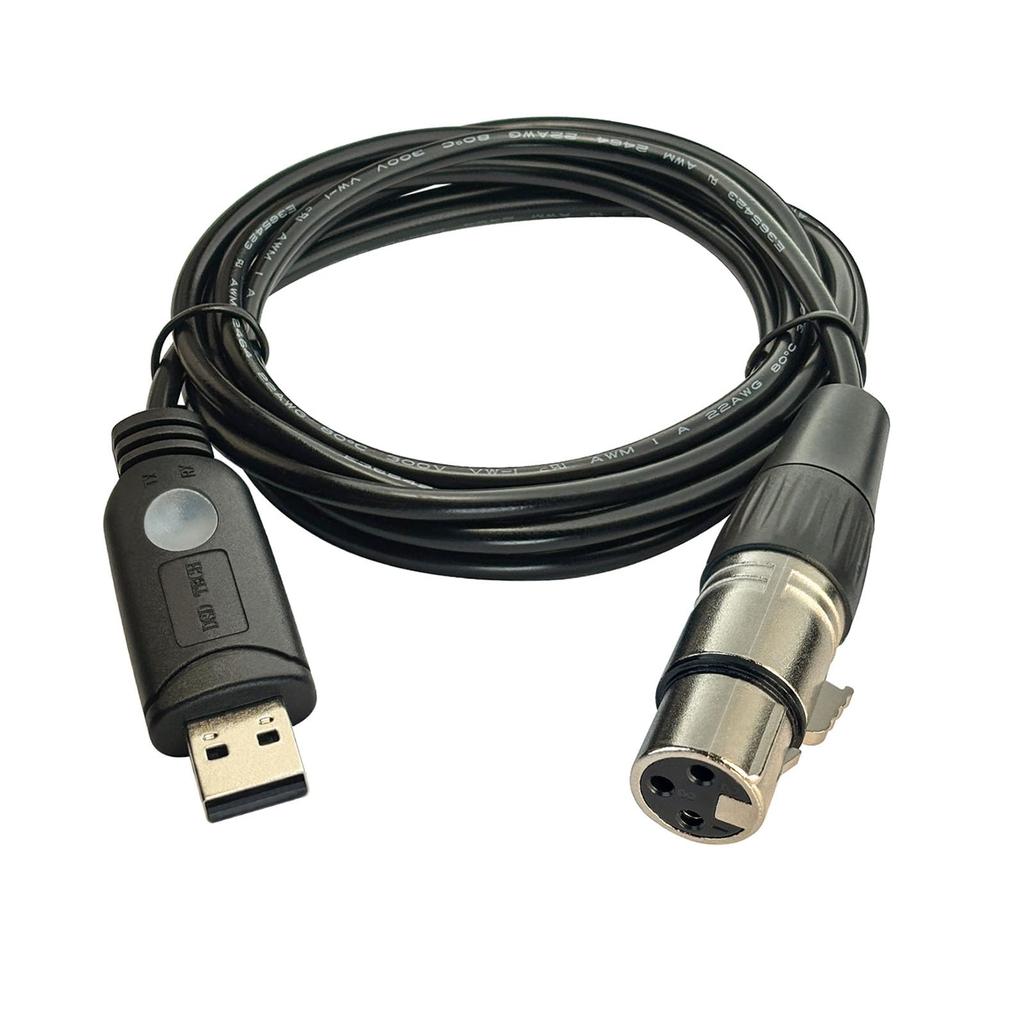

This USB-DMX cable allows you to quickly establish a connection with lighting equipment that supports the DMX512 protocol. The cable has a built-in FTDI FT232RL chip, compatible with most operating systems, stable and reliable.
Please note
Please install the driver before use.
This DMX cable is not a microphone cable, so it cannot be used for recording music.
specification
Model: SH-RS09B
Standard: RS485
Protocol DMX512
Interface USB A and DIN 3 pin female

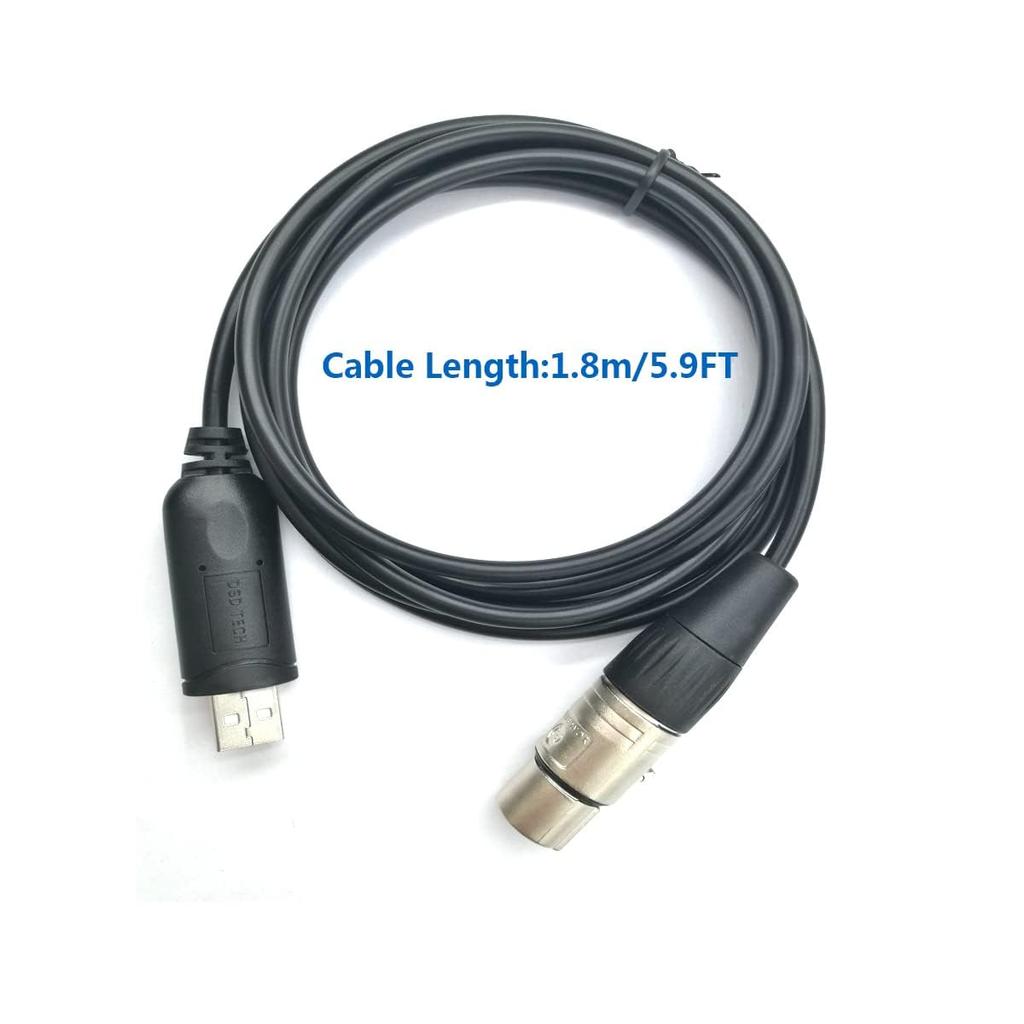

Length: 180cm/5.9ft.

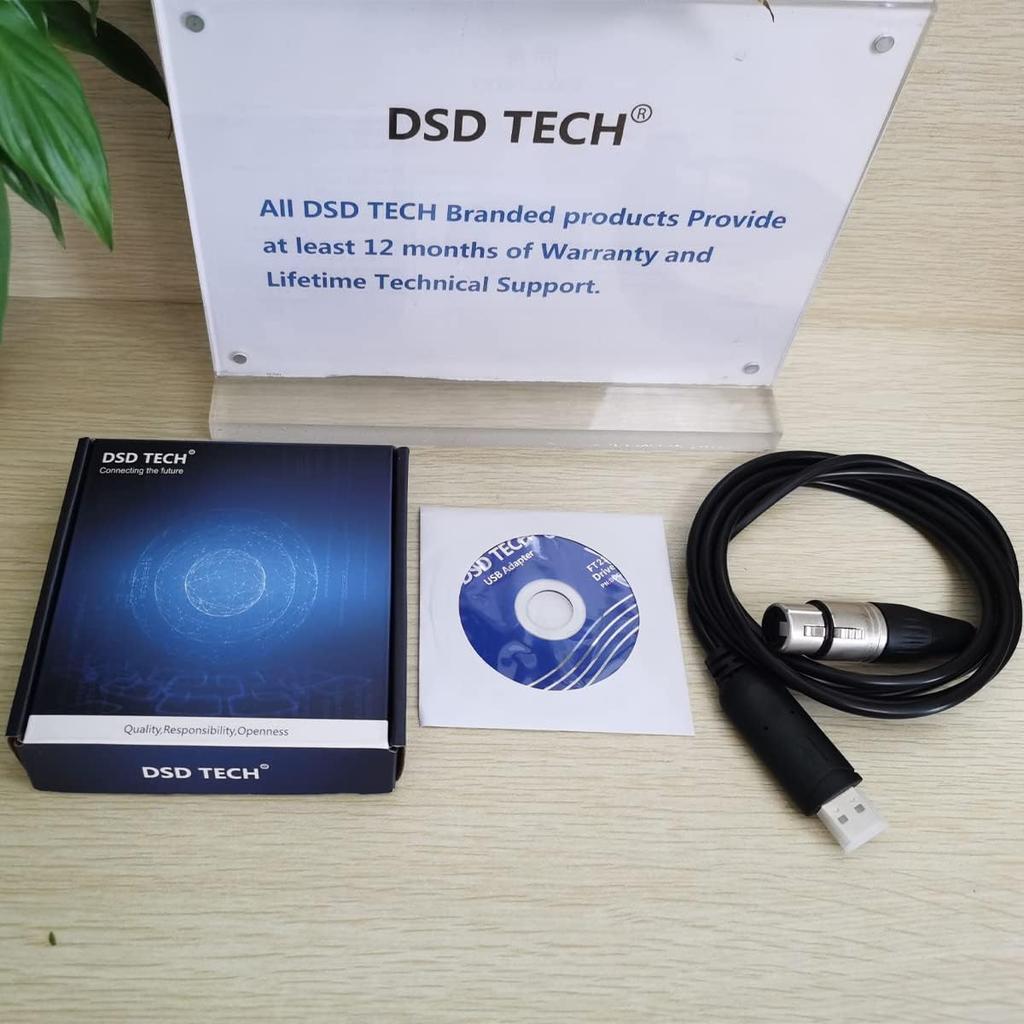

package
1 x USB to DMX512 Interface Adapter
1 x User manual
guarantee
DSD TECH provides 1 year warranty and lifetime technical support for this usb-DMX512 cable. We will respond within 24 hours.

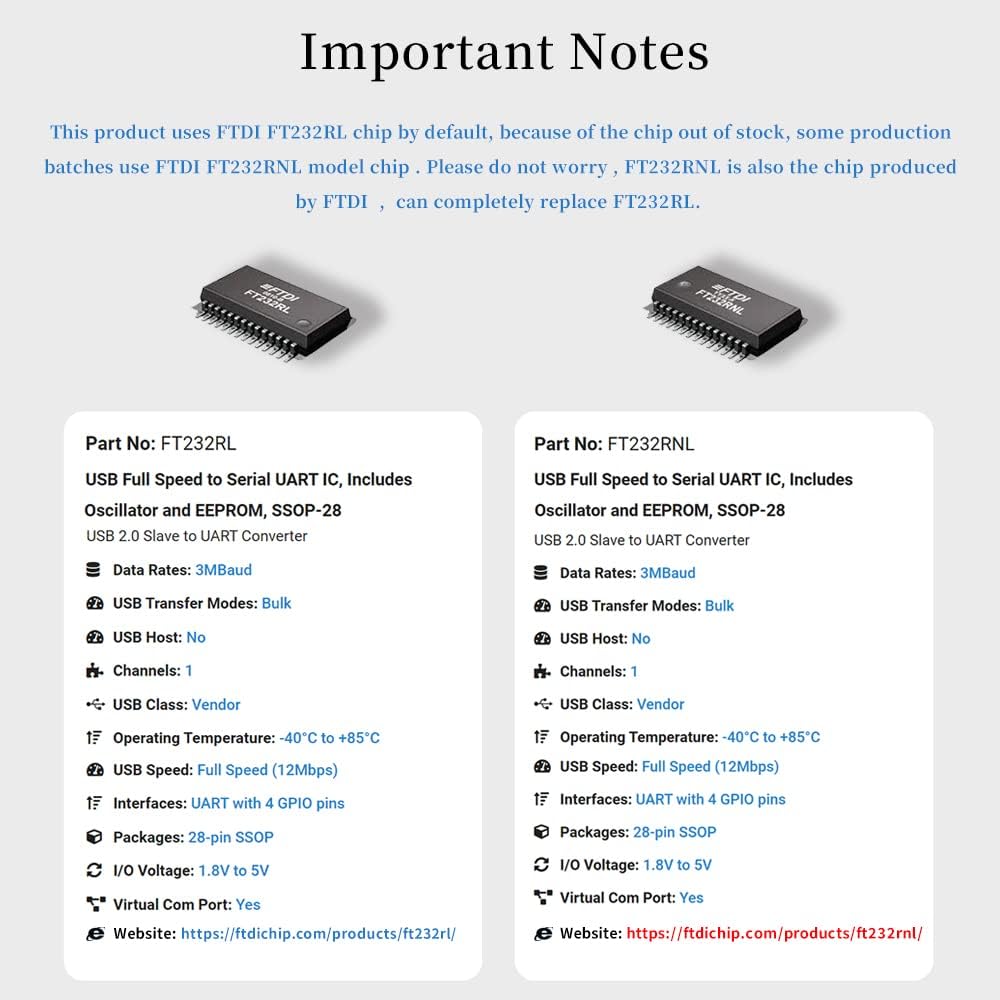

Important notes
This product uses FTDI FT232RL chip by default, but due to the chip being out of stock, some production batches use FTDI FT232RNL model chip. Don't worry, FT232RNL is also an FTDI chip and can completely replace FT232RL.
